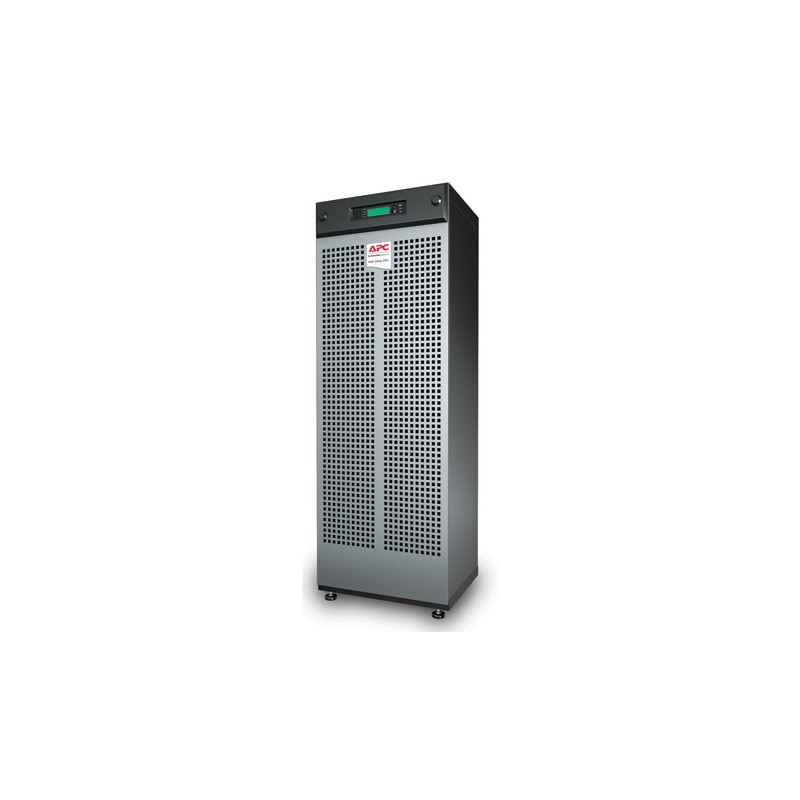

APC MGE Galaxy 3500 15kVA 400V
APC MGE Galaxy 3500 15kVA 400V APC MGE Galaxy 3500 15kVA 400V

APC MGE Galaxy 3500 15kVA 400V

MGE Galaxy 3500 15kVA 400V with 3 Battery Modules Expandable to 4, Start-up 5X8

G35T15KH3B4S

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

APC MGE Galaxy 3500, 12 kW / 15 kVA,Input 400V 3PH / Output 400V 3PH, Extended runtime model.



Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual.



- Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

- Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

- Parallel-redundant capable

Power the connected equipment with multiple UPSs to increase system redundancy



Availability

- Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

- Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

- Parallel-capacity capable

Increases total power capacity by using multiple UPSs simultaneously.

- Advanced electrical features

Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency

- Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

- Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

- Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Manageability

- Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

- Environmental Monitoring

Prevent equipment failure from a full range of threatening environmental conditions.

- LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

- Audible alarms

Provides notification of changing utility power and UPS conditions.
CertificationCE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111
Operating temperature (T-T)0 - 40 °C
Weight535000 g

G35T15KH3B4S.pdf

APC MGE Galaxy 3500 15kVA 400V Data Sheet

Download (141.21k)
