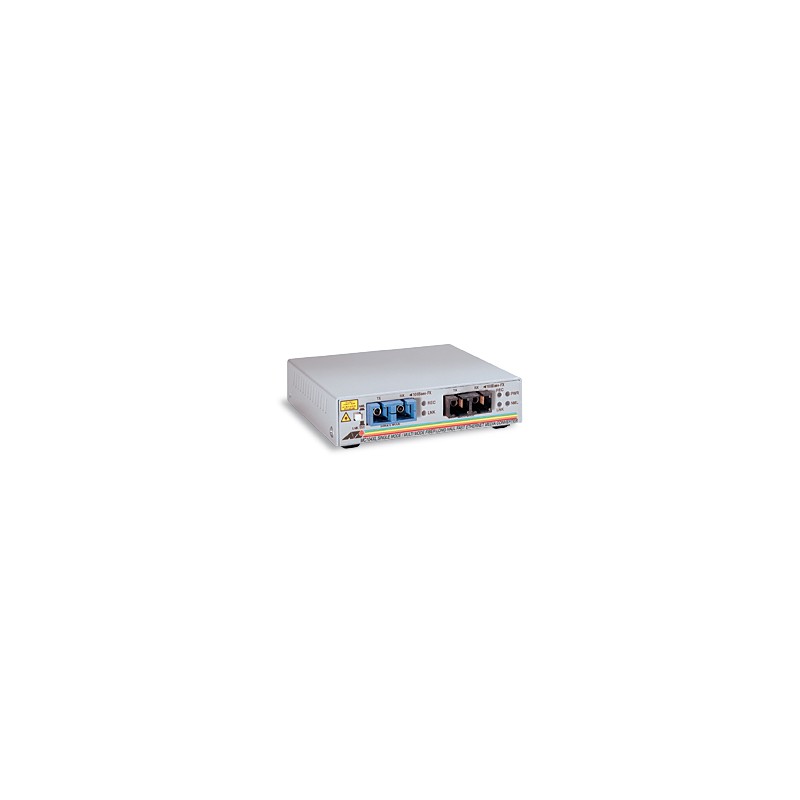

Allied Telesis AT-MC104XL-60
Allied Telesis AT-MC104XL-60 Allied Telesis AT-MC104XL-60

Allied Telesis AT-MC104XL-60

AT-MC104XL-60 - Fiber SC multi-mode to fiber SC single-mode media converters

AT-MC104XL-60

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Fiber Connections

The Allied Telesis range of Fast Ethernet media converters provide a complete family of conversion devices, allowing users to extend the size of UTP and multi-mode fiber networks with the use of single-mode fiber cabling. Supporting SC connected single-mode fiber, these converters can be used to extend networks up to a distance of 40km.



Auto-negotiation and MissingLink™

When connecting media converters to autonegotiating Fast Ethernet switches, these media

converters will automatically connect the link in either full or half-duplex mode, allowing the link

to be established with the greatest bandwidth. Alternatively, the MissingLink feature allows

accurate reporting to network management systems as well as allowing devices with

redundant link capability to be inter-connected with these media converters, as a failure in one

fiber link will be signalled to the switch, allowing the second link to become active.



Simple Installation

The media converters allow the installer to test the integrity of fiber connection, by forcing the

converters to communicate over the fiber cable. This Link Test feature allows installers to check

for cable faults without the need for expensive fiber-optic test equipment.



Standalone or Rack-mount

Each small media converter is powered by an external power supply unit for use in standalone

applications.Where multiple media converters are being used, up to 12 standalone devices can

be inserted into a low-cost rack-mount chassis, allowing all the converters to be powered by a

single internal power supply. In critical applications, a second load sharing internal power supply can be installed into the rackmount chassis.



Hassle Free Support

Allied Telesis Fast Ethernet media converters offer free technical support, ensuring troublefree

installation.
CertificationFCC Class A, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant
Connectivity technologyWired
Operating temperature (T-T)0 - 40 °C
Weight294 g

AT-MC104XL-60.pdf

Allied Telesis AT-MC104XL-60 Data Sheet

Download (223.35k)
