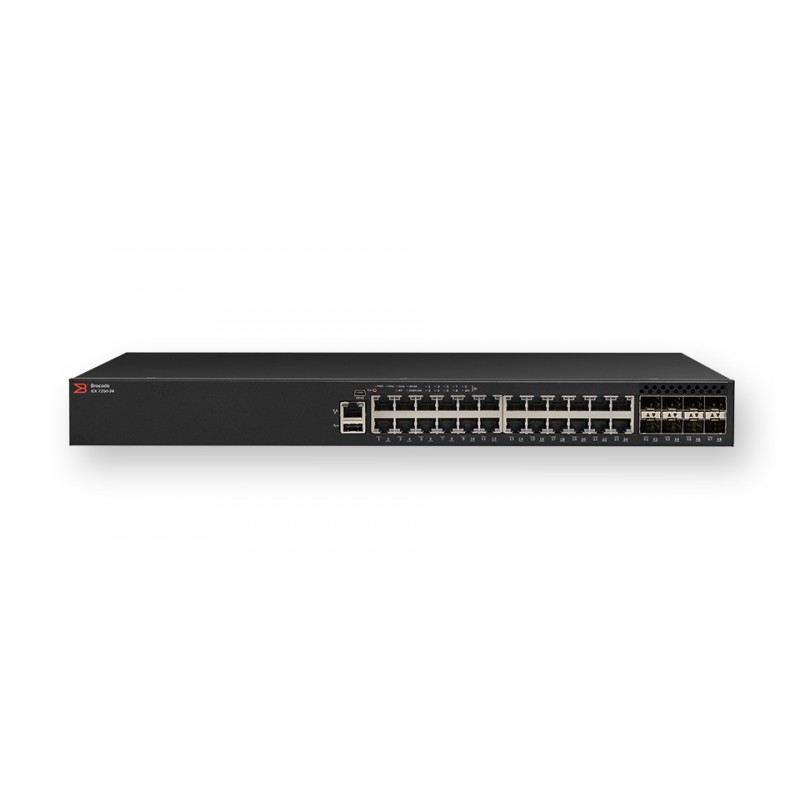

Brocade ICX7250-24P
Brocade ICX7250-24P Brocade ICX7250-24P Brocade ICX7250-24P

Brocade ICX7250-24P

208 Gbps, 154 Mpps, 24 x RJ-45 10/100/1000 Mbps, 8 x 1/10 Gbps SFP+, PoE/PoE+, 6.56 Amp, 4.73 kg

ICX7250-24P

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Future-proof switching at entry-level price

Meet tomorrow’s needs today—even if you don’t know what those needs will be. Use the same standard ports for uplink or stacking, phase in SDN, and expand one switch stack to multiple locations. You can even add more advanced ICX family features with Campus Fabric. And only Brocade lets you manage switches across network layers from a single touchpoint.



Enterprise-level capabilities



- Full Layer 3 support on delivery; Advanced Layer 3 capabilities through the Campus Fabric

- Manageable via open standards

- Market-leading stackability with up to 12 switches per stack, and up to 80 Gbps of stacking bandwidth

- Manageable via standard CLI and BNA enterprise management tool

- Future proof with OpenFlow support for network programmability



Simple, powerful management and monitoring



- The Campus Fabric lets you combine access, aggregation, and core Brocade 7000 switches in a single management domain, and allows switches to inherit advanced features from higher-level switches in the same domain

- The Brocade Campus Fabric Technology provides deployment flexibility and consolidated management

- sFlow support provides continuous network monitoring on every port

- Auto configuration and open standards management speed operations and reduce costs



Always-on availability



- External power supply for system power redundancy

- Redundant uplink/stacking ports

- Instantaneous hitless failover to a standby controller

- Software updates without downtime with ISSU

- Insert and remove stack members during operation
CertificationRoHS, WEEE\nIEC 68-2-36, IEC 68-2-6\nIEC 68-2-27, IEC 68-2-32
Depth280 mm
Form factor1U
Height43.7 mm
Operating temperature (T-T)5 - 50 °C
SafetyCAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2
Weight4730 g
Width440 mm

ICX7250-24P.pdf

Brocade ICX7250-24P Data Sheet

Download (7.85M)
