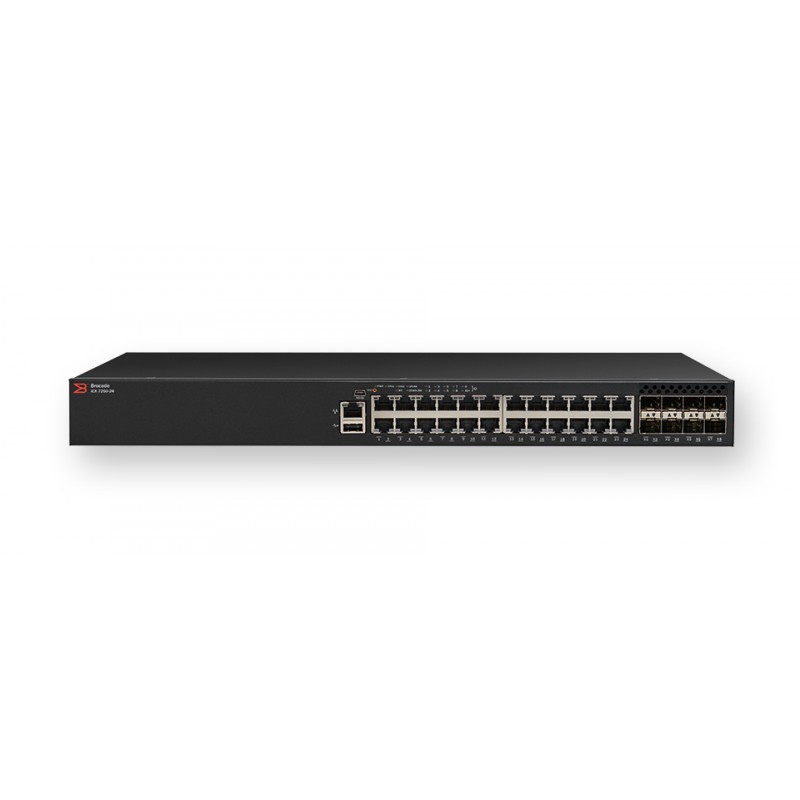

Brocade ICX 7250-24
Brocade ICX 7250-24 Brocade ICX 7250-24

Brocade ICX 7250-24

L3, Managed, 24 x 10/100/1000 RJ-45

ICX7250-24

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Future-proof switching at entry-level price



Meet tomorrow’s needs today—even if you don’t know what those needs will be. Use the same standard ports for uplink or stacking, phase in SDN, and expand one switch stack to multiple locations. You can even add more advanced ICX family features with HyperEdge. And only Brocade lets you manage switches across network layers from a single touchpoint.



Enterprise-level capabilities



- Full Layer 3 support on delivery; Advanced Layer 3 capabilities through the Switch Port Extender

- Manageable via open standards

- Market-leading stackability with up to 12 switches per stack, and up to 80 Gbps of stacking bandwidth

- Manageable via standard CLI and BNA enterprise management tool

- Future proof with OpenFlow support for network programmability
10G supportNo
CertificationFCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003; AS/NZS 55022; EN 61000-3-2; EN 61000-3-3; EN 61000-6-3
Depth280 mm
Form factor1U
Height43.7 mm
Operating temperature (T-T)-5 - 50 °C
Supported network protocolsIPv4 / IPv6
Weight3760 g
Width440 mm

ICX7250-24.pdf

Brocade ICX 7250-24 Data Sheet

Download (2.59M)
