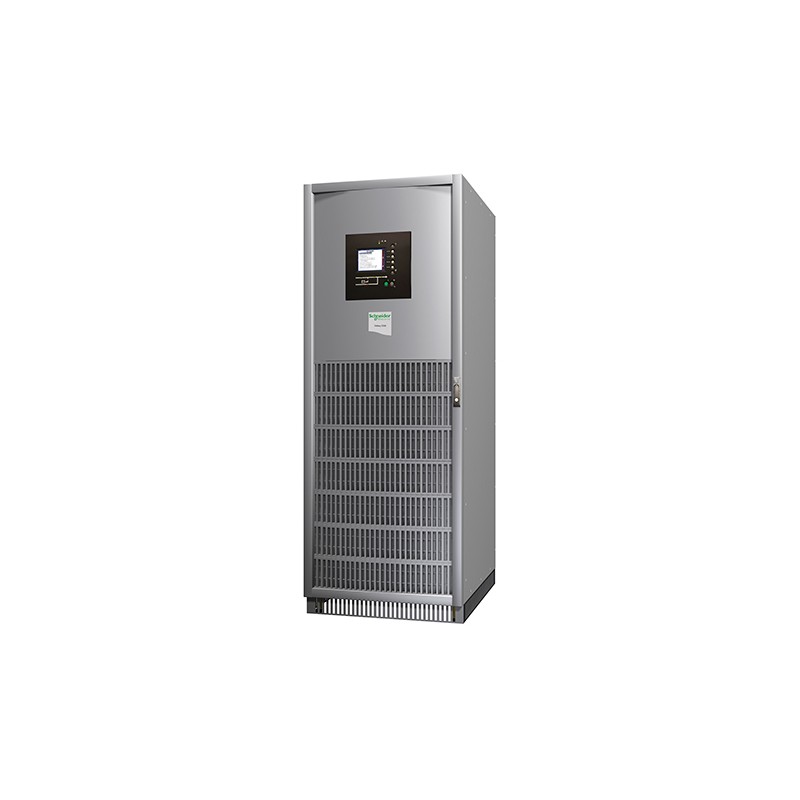

APC MGE Galaxy 5500
APC MGE Galaxy 5500 APC MGE Galaxy 5500 APC MGE Galaxy 5500 APC MGE Galaxy 5500 APC MGE Galaxy 5500

APC MGE Galaxy 5500

120kVA, 108 kW, 400V, 3-Phase, Hard Wire In, Hard Wire Out, LCD

G55TUPSU120HS

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

EU CoC for UPS

Ensures that UPSs sold in the EU are highly efficient



Multiple levels of service

With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.



Technical support

Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.



Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.



Wide input voltage range

Designed for harsh electrical environments to save battery life.



ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection



Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.



Integrates with StruxureWare Central

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network



Network management capability

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.



LED Indicators

Provide easy-to-read status of the unit and utility power conditions.



LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.



Flexible Design

Available in a wide range of configurations to suit any operating environment.



Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Parallel-capacity capable

Increases total power capacity by using multiple uninterruptible power supplies simultaneously.



Advanced electrical features

Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency



Parallel-redundant capable

Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy



Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.



Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
CertificationCE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE
Depth850 mm
DisplayLCD
Form factorTower
Height1900 mm
International Protection (IP) codeIP20
Operating temperature (T-T)0 - 40 °C
Weight520000 g
Width712 mm
