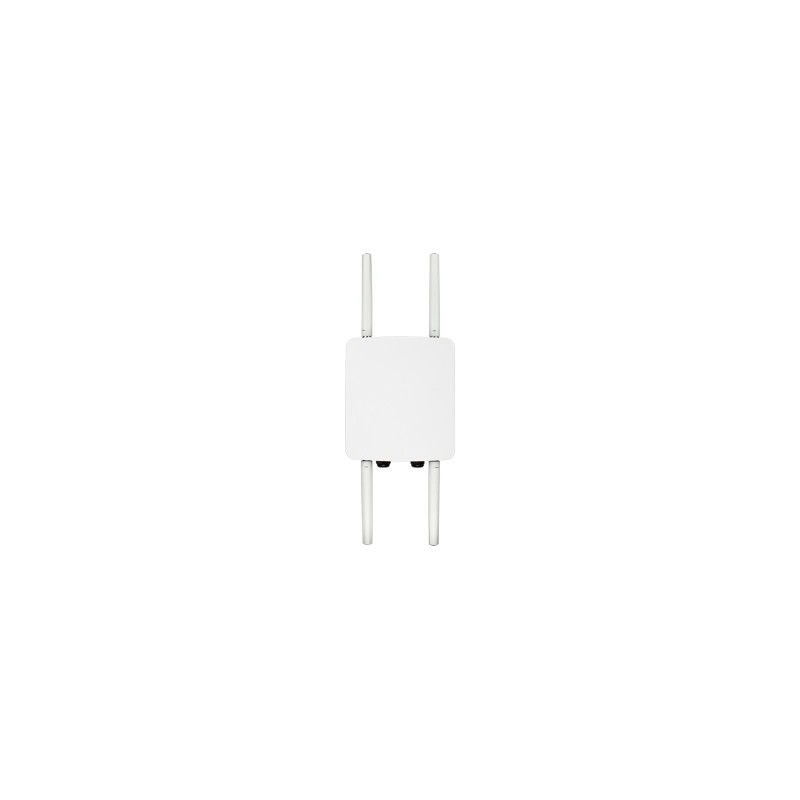

D-Link DWL-8710AP
D-Link DWL-8710AP D-Link DWL-8710AP D-Link DWL-8710AP D-Link DWL-8710AP D-Link DWL-8710AP D-Link DWL-8710AP

D-Link DWL-8710AP

867+300 Mbps, 2x LAN, WPA/WPA2, IP67, POE, VLAN, 250 x 220 x 45 mm

DWL-8710AP

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The DWL-8710AP is an outdoor dual-band Wireless AC1200 Access Point designed specifically for deployment in business and campus environments. Highly manageable and capable of blazing speeds, the DWL-8710AP integrates seamlessly into an existing network infrastructure and can be easily scaled to meet future demands.



Convenient Installation



The DWL-8710AP can be installed on a wall or pole with the included mounting brackets. The DWL-8710AP is IP67-compliant and is designed to operate in harsh outdoor environments and temperatures ranging from -30 up to 60˚C. For easy installation, it has integrated 802.3at Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.



Superior Wireless AC Performance



The DWL-8710AP delivers reliable, high-speed wireless performance using the latest 802.11ac standards. Band steering ensures 5GHz-enabled clients can achieve their maximum performance without being bottle-necked by legacy 2.4 GHz 802.11b/g/n clients. AC SmartBeam™ technology enables the DWL-8710AP to have even greater reach than ever before.



Simultaneous Dual-Band Wireless

Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps over the 2.4 GHz band, and 867 Mbps over the 5 GHz band



Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including Station Isolation



Centrally Manage your Wireless Network



When working in conjunction with a D-Link Unified Switch or Wireless Controller, the DWL-8710AP, like other D-Link Unified Access Points, may be centrally managed. This allows up to 1,024 D-Link Unified Access Points to be deployed and managed easily and efficiently. This managed wireless solution offers self-organising, self-optimising and self-healing network capabilities to increase the stability of the entire wireless network.
CertificationCE, EN 301 893 V1.7.1 (2012-06) (DFS/TPC), EN 300, 328 V1.8.1 (2012-06), FCC, IC, cUL, C-Tick, NCC, Wi-Fi, LVD, BSMI
Depth45 mm
Ethernet LAN (RJ-45) ports2
Height220 mm
Housing materialMetal,Polycarbonate
International Protection (IP) codeIP67
Operating temperature (T-T)-30 - 60 °C
Weight2053 g
Width250 mm

DWL-8710AP.pdf

D-Link DWL-8710AP Data Sheet

Download (471.48k)
