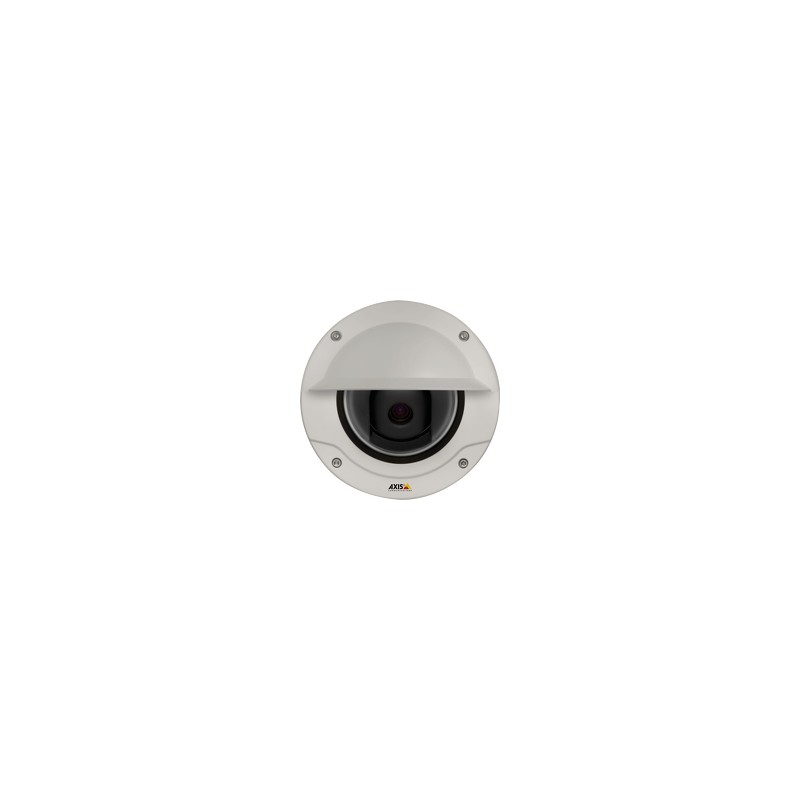

Axis Q3505-VE Mk II
Axis Q3505-VE Mk II Axis Q3505-VE Mk II Axis Q3505-VE Mk II Axis Q3505-VE Mk II

Axis Q3505-VE Mk II

9-22 mm, F1.6, 50/60 fps, 1/143000 to 2s, 512 MB RAM, 256 MB Flash

0875-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Enhanced Lightfinder and WDR - Forensic Capture

- 50/60 fps in HDTV 1080p or 100/120 fps in 720p

- Electronic image stabilization

- Vandal resistance with IK10+ (50 joules)

- Broad range of temperature, -50 °C to 60 ºC (-58 ºF to 140 ºF)



AXIS Q3505-VE Mk II delivers superior image quality in footage of fast-moving objects in harsh environments and even the most demanding lighting conditions. It’s robust and outdoor ready. And installation is fast, easy and cost-effective.



Excellent image quality. Low bandwidth.

AXIS Q3505-VE Mk II provides images that are optimized for forensic purposes regardless of lighting conditions. It has enhanced Lightfinder technology for high-quality images even when they’re recorded in darkness. WDR – Forensic Capture ensures excellent detail when there are both bright and darker areas in a scene. And Axis’ Zipstream technology significantly reduces bandwidth and storage requirements, while preserving high-quality images. In addition, AXIS Q3505-VE Mk II offers a wide range of viewing angles with standard (3-9 mm) and telephoto (9-22 mm) lens options available.



Fast. Faster. Fastest.

With up to 100/120 fps in HDTV 720p with WDR disabled and up to 30 fps in HDTV 1080p with WDR enabled, AXIS Q3505-VE Mk II captures sharp images of fast-moving objects and people. So you’ll be able to identify people, objects and vehicles in harsh environments under difficult lighting conditions. The Electronic image stabilization greatly improves video quality in situations where the camera is subject to vibrations, providing smooth and comfortable live viewing.



Installation that’s as easy as 1, 2, 3

The compact fixed-dome design of AXIS Q3505-VE Mk II makes installation easy and cost-effective. And there are useful aids like level assistant, digital leveling and auto rotation available. AXIS Q3505-VE Mk II also features versatile cable management with space for a service loop and optional connection to any kind of conduit. There’s a bracket included for mounting on junction boxes or directly on walls or ceilings, and there are optional accessories for recessed mounting or mounting on pendants. In addition remote zoom and focus capabilities provide convenient zooming and focusing over the network, eliminating the need for hands-on fine-tuning.



A camera that can take it

The outdoor-ready AXIS Q3505-VE Mk II is specially designed to be reliable, weatherproof and vandal resistant. It can operate in temperatures ranging from -50 °C to 60 °C (-58 °F to 140 °F). And it comes with a weather shield for effective protection from sunlight, rain or snow. AXIS Q3505-VE Mk II also features IK10+ rating, which means it can withstand at least 50 joules of impact. And an alarm can be sent if the camera receives a blow.
CertificationEMC, FCC, VCCI Class A
Connectivity technologyWired
DC output voltage12
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate120 fps
Housing materialAluminium,Polycarbonate
International Protection (IP) codeIP69K
Maximum resolution1920 x 1080 pixels
Minimum illumination0.03 lx
Mounting typeWall
Operating temperature (T-T)-40 - 60 °C
Optical sensor size1/2.8 "
Placement supportedOutdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal36 °
Viewing angle, vertical19 °
Weight1800 g
Number of cameras1

0875-001.pdf

Axis Q3505-VE Mk II Data Sheet

Download (624.76k)
