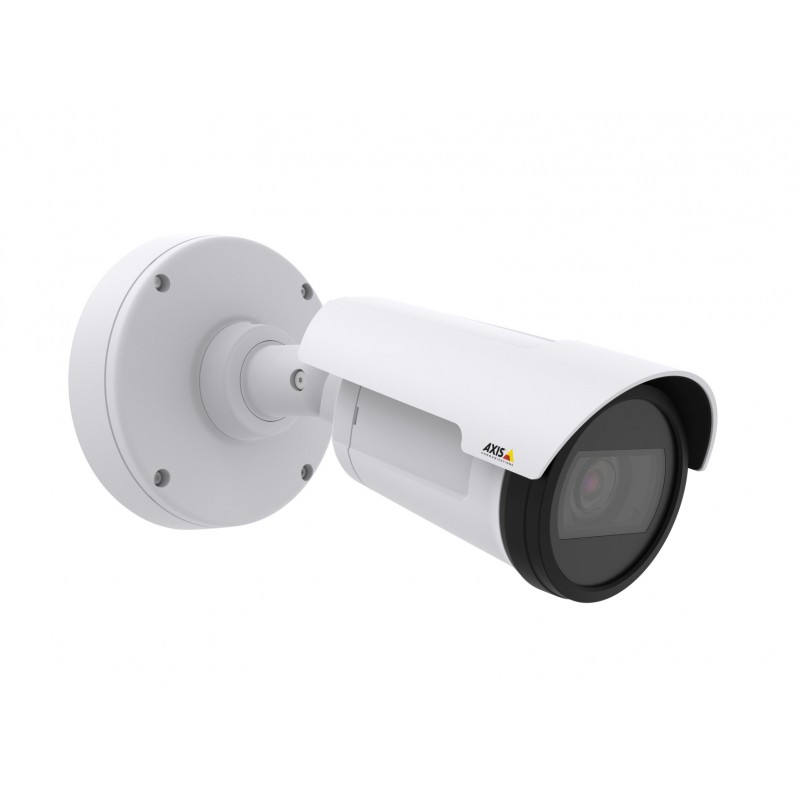

Axis P1405-LE Mk II
Axis P1405-LE Mk II Axis P1405-LE Mk II Axis P1405-LE Mk II Axis P1405-LE Mk II

Axis P1405-LE Mk II

CMOS 1/2.8”, 2.8–10 mm, F1.6, HDTV, 1080p, 25/30 fps, IR LED, WDR, H.264, M-JPEG, 132 x 260 mm

0961-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

With features such as Lightfinder and WDR – Forensic Capture, the bullet-style AXIS P1405-LE Mk II provides excellent image quality in HDTV 1080p resolution, even in complex light conditions. In addition, the camera supports Axis’ Corridor Format as well as P-Iris control. With operating temperatures between -10 º C to 50 º (14 ºF to 122 ºF), the day and night camera is ideal for cost-effective 24/7 video surveillance in exposed outdoor areas such as parking lots and service stations, and for general indoor surveillance.



Excellent image quality



With a varifocal, P-iris lens, AXIS P1405-LE Mk II provides excellent image quality at up to 30 frames per second in HDTV 1080p / 2 megapixel resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency.



Built-in IR-LED



AXIS P1405-LE Mk II offers discreet integration of power efficient IR LED, providing automatic illumination of a scene in complete darkness, at an event or when requested by a user. The IR LED illumination, which is invisible to the human eye, is perfect for discovering objects in a range of up to 10 meters (33 ft).



Lightfinder and Wide Dynamic Range (WDR)



P1405-LE Mk II features Wide Dynamic Range – Forensic Capture for perfectly balanced video quality in scenes with strong variations in light, and Axis’ Lightfinder technology that enables outstanding image usability in poor lighting. The camera can seamlessly transition between handling WDR and low-light conditions.



Edge storage and Zipstream



With edge storage it is possible to record video directly to a storage such as a microSD/SDHC™* card, thereby creating a flexible and reliable video surveillance system. In addition, Axis’ Zipstream technology significantly reduces bandwidth and storage requirements without costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream, while unnecessary data can be removed.



Ease of installation



AXIS P1405-LE Mk II has a compact, low-weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available such as AXIS Weather Shield K for protection against sun and rain. AXIS P1405-LE Mk II offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.
CertificationEN 61000-6-1, EN 61000-6-2, EN 50121-4,\nIEC 62236-4, EN 50581, EN 55024, EN 55032 A, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN-32 A, KN-35, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2
Connectivity technologyWired
Form factorbullet
Frame rate30 fps
International Protection (IP) codeIP66
Maximum resolution1920 x 1080 pixels
Mounting typeCeiling/wall
Night vision distance20 m
Operating temperature (T-T)-10 - 50 °C
Optical sensor size1/2.8 "
Placement supportedIndoor & outdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal93 °
Viewing angle, vertical51 °
Weight800 g
Width260 mm
Number of cameras1

0961-001.pdf

Axis P1405-LE Mk II Data Sheet

Download (379.24k)
