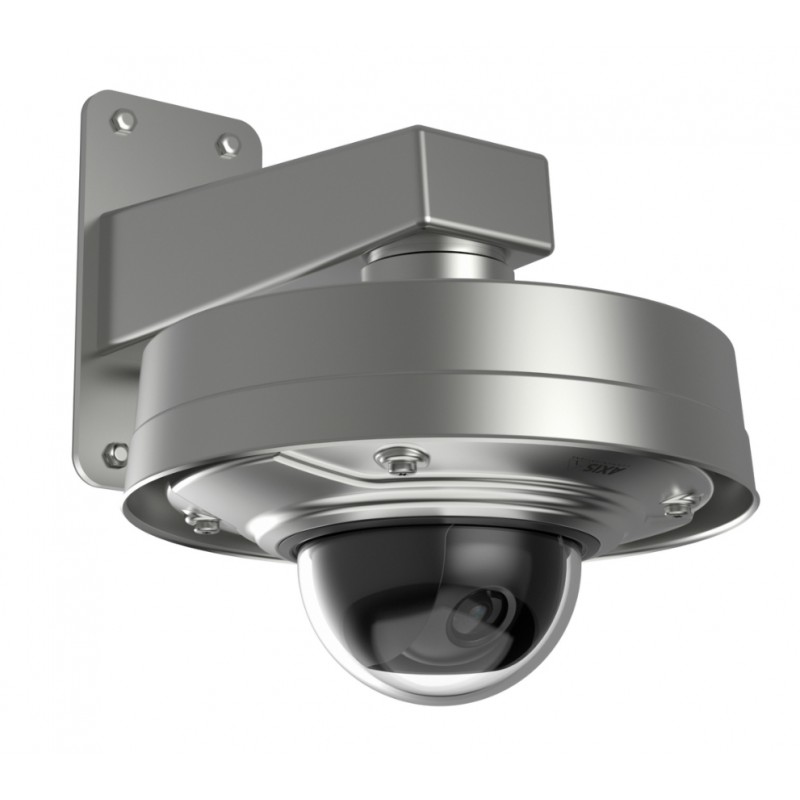

Axis Q3505-SVE 9 mm Mk II
Axis Q3505-SVE 9 mm Mk II Axis Q3505-SVE 9 mm Mk II Axis Q3505-SVE 9 mm Mk II Axis Q3505-SVE 9 mm Mk II

Axis Q3505-SVE 9 mm Mk II

Progressive scan RGB CMOS 1/2.8", 3–9 mm, F1.3, HDTV 1080p, 512 MB RAM, 256 MB Flash, - 50 °C to 60 °C, 2 kg, ø195 mm x 119 mm

0773-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Tough as steel



AXIS Q3505-SVE Mk II network camera is weatherproof, vandal-proof and exceptionally reliable. Thanks to its marine-grade stainless-steel casing (SS 316L), it’s exceptionally resistant to all kinds of corrosive materials, including salt water and chemicals. The combination of the stainless steel casing and the rugged nylon dome cover - with high-resistance to UV light - makes the camera suitable for extreme conditions. It can operate in extreme temperatures ranging from -50 °C to 60 °C (-58 °F to 140 °F). And its IK10+ rating means it can withstand at least 50 joules of impact. In addition, an alarm can be sent if the camera receives a blow.



Excellent image quality. Low bandwidth.



AXIS Q3505-SVE Mk II provides images that are optimized for forensic purposes regardless of lighting conditions. It has enhanced Lightfinder technology for high-quality images even when they’re recorded in darkness. WDR – Forensic Capture ensures excellent detail when there are both bright and darker areas in a scene. And Axis’ Zipstream technology significantly reduces bandwidth and storage requirements, while preserving high-quality images. In addition, AXIS Q3505-VE Mk II offers a wide range of viewing angles with standard (3-9 mm) and telephoto (9-22 mm) lens options available.



Fast. Faster. Fastest.



With up to 100/120 fps in HDTV 720p with WDR disabled and up to 30 fps in HDTV 1080p with WDR enabled, AXIS Q3505-SVE Mk II captures sharp images of fast-moving objects and people. So you’ll be able to identify people, objects and vehicles in harsh environments under difficult lighting conditions.



Installation that’s as easy as 1, 2, 3



The compact fixed-dome design of AXIS Q3505-SVE Mk II makes installation easy and cost-effective. And there are useful aids like level assistant, digital leveling and auto rotation available. AXIS Q3505-SVE Mk II also features versatile cable management with space for a service loop and optional connection to any kind of conduit. There’s a bracket included, AXIS T94U02S Mounting Bracket, for mounting on junction boxes or directly on walls or ceilings.



Moreover, there are optional accessories for wall or pole mounting as well as indoor and outdoor pendant kits. All the accessories are made with marine-grade, electropolished and coated stainless steel (SS 316L) material. In addition remote zoom and focus capabilities provide convenient zooming and focusing over the network, eliminating the need for hands-on fine-tuning.
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Form factordome
Height119 mm
Housing materialStainless steel
International Protection (IP) codeIP67
Maximum resolution1920 x 1080 pixels
Minimum illumination0.02 lx
Mounting typeCeiling/wall
Operating temperature (T-T)-50 - 60 °C
Optical sensor size1/2.8 "
Placement supportedIndoor & outdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP , HTTPS, SSL/TLS, QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal69 °
Viewing angle, vertical36 °
Weight2000 g
Number of cameras1

0773-001.pdf

Axis Q3505-SVE 9 mm Mk II Data Sheet

Download (389.48k)
