Axis P3224-V Mk II
Axis P3224-V Mk II Axis P3224-V Mk II

Axis P3224-V Mk II

Progressive scan RGB CMOS 1/3”, HDTV 720p, 1/66500s - 1s, 512 MB RAM, 256 MB Flash, 0 - 50°C, ø 149 x 101 mm, 550 g

0950-001

Stock Due 20-01-2002

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Image usability

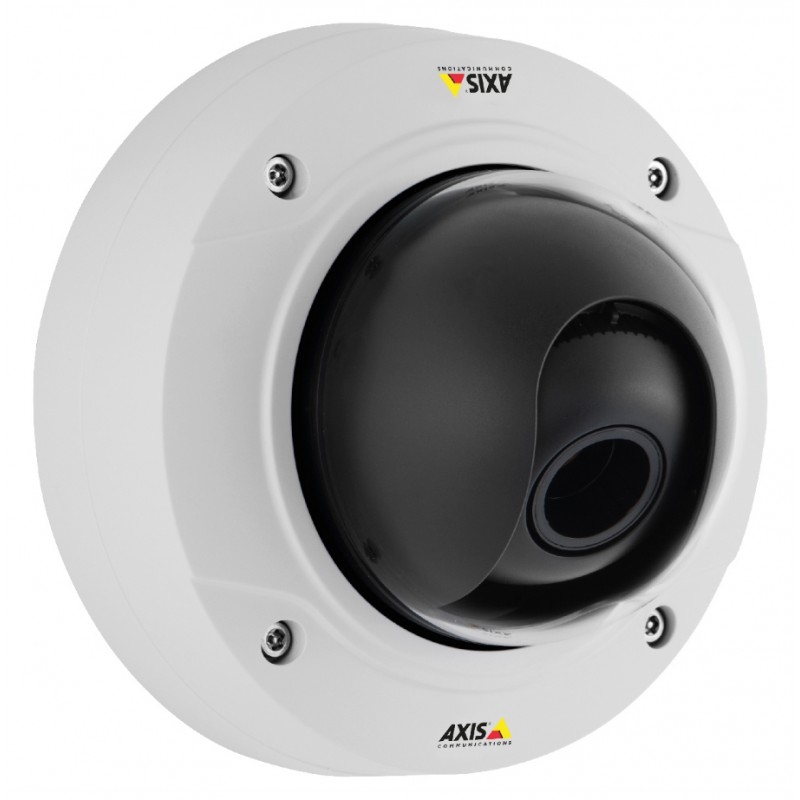

AXIS P3224-V Mk II Network Camera is a streamlined fixed dome providing HDTV 720p video. The camera is ideal for indoor video surveillance in retail, banking, hotels and other service industries.



The camera features a varifocal lens, P-Iris control for optimal clarity and depth of field, and day/night functionality. Equipped with WDR – Forensic Capture to handle scenes with strong light variations, and Lightfinder technology for exceptional light sensitivity, this versatile camera provides outstanding video quality in both strong and poor light conditions.



Effortless and versatile installation



AXIS P3224-V Mk II is dust-resistant and IK08 impact-resistant, and has been designed for effortless and reliable installation. The camera features a varifocal lens and remote zoom and focus capabilities, which eliminates the need for hands-on fine tuning. AXIS P3224-V Mk II can be mounted flush to a wall, ceiling or on junction boxes, and optional kits are available for recessed mounting or on pendants. Further, the camera supports versatile cable management with optional adapters for connecting to various conduits. The camera casing is easily repaintable in any desired color to blend into the environment.



Efficient use with Zipstream



AXIS P3224-V Mk II provides multiple, individually configurable H.264 and Motion JPEG video streams. With a built-in memory card slot, the camera enables local storage of video. In addition, Axis’ Zipstream technology significantly lowers bandwidth and storage requirements without costly and complicated integration.
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate60 fps
Height101 mm
International Protection (IP) codeIP52
Maximum resolution1280 x 960 pixels
Minimum illumination0.04 lx
Operating temperature (T-T)0 - 50 °C
Optical sensor size1/3 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP , HTTPS , SSL/TLS , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP , SNMP v1/v2c/v3(MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , TCP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal56 °
Viewing angle, vertical28 °
Weight550 g
Number of cameras1

0950-001.pdf

Axis P3224-V Mk II Data Sheet

Download (583.9k)
