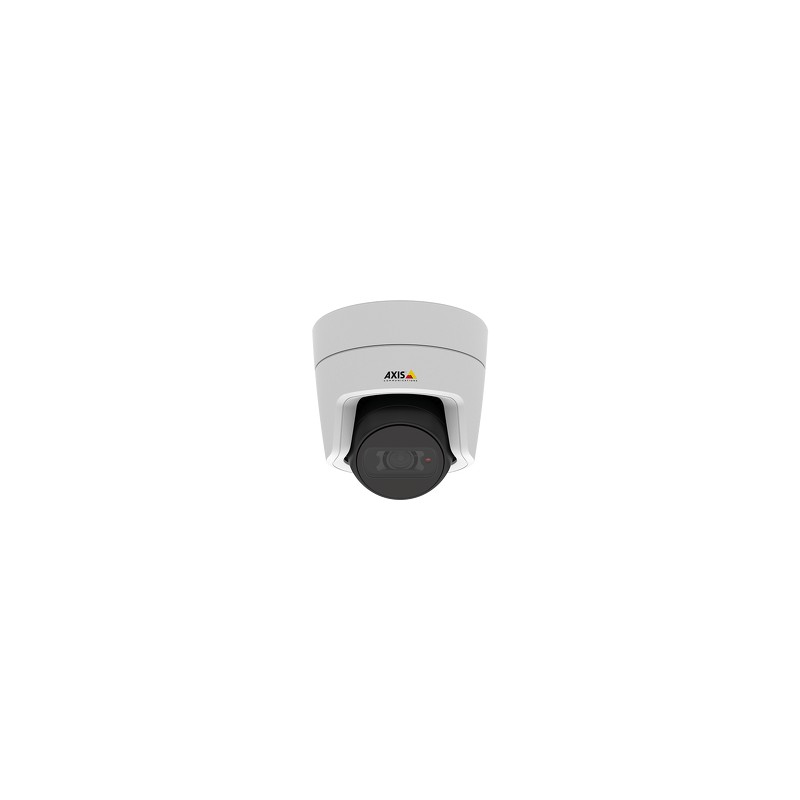

Axis M3105-L
Axis M3105-L Axis M3105-L

Axis M3105-L

IP, 1/2.8" RGB CMOS, 1920 x 1080, f=2.8 mm, Digital PTZ, HDTV 1080p, IR, microSD Card Slot, 512 MB Ram, 256 MB Flash, PoE

0867-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

With its built-in IR illumination AXIS M3105-L is ideal for situations where it’s sometimes dark or the lighting can be poor. Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3105-L also offers Wide Dynamic Range (WDR) – Forensic Capture, for excellent detail when light levels vary greatly, for example at entrances with bright daylight outside and dimmer light inside.



Axis quality at an attractive price



AXIS M3105-L gives you sharp HDTV 1080p image quality and a 115° field of view. It features Axis’ Zipstream technology, which greatly reduces storage and bandwidth needs, while capturing important details in full image quality. AXIS M3105-L also supports video analytics such as Video Motion Detection and Active tampering alarm. Thanks to the AXIS Camera Application Platform, you can also choose to install AXIS Cross Line Detection, and AXIS Digital Autotracking, as well as third-party analytics solutions such as people counting.



Fits in anywhere



Small and flexible, AXIS M3105-L can be mounted on walls or ceilings as you prefer. Its smart design makes it easy to repaint to fit into any environment. And a long list of accessories, including black casing and various mounting kits, means it can be put up just about anywhere.
CertificationEN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B,\nICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35\nIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068
Connectivity technologyWired
Depth100 mm
Ethernet LAN (RJ-45) ports1
Form factordome
Height85 mm
Housing materialPolymer
International Protection (IP) codeIP42
Maximum resolution1920 x 1080 pixels
Mounting typeCeiling/wall
Night vision distance15 m
Operating temperature (T-T)0 - 50 °C
Optical sensor size1/2.8 "
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal115 °
Viewing angle, vertical64 °
Width100 mm
Number of cameras1
