Axis M3045-V
Axis M3045-V Axis M3045-V Axis M3045-V Axis M3045-V

Axis M3045-V

IP, 1/3” CMOS, 1920x1080, HDTV 1080p, WDR, 512 MB RAM, 256 MB Flash, Pan/Tilt/Rotation, 1 x Fast Ethernet RJ-45, microSD/microSDHC/microSDXC, PoE

0804-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

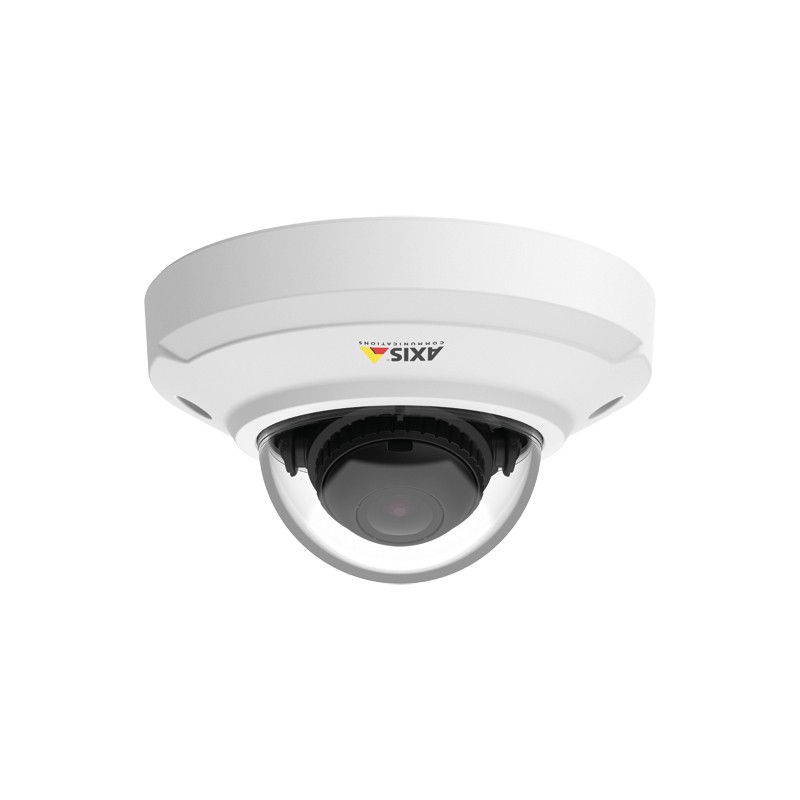

AXIS M3045-V is a fuller featured affordable fixed mini dome surveillance camera. It features HDTV 1080p video quality and an HDMI output for live streaming to a public monitor. Offering excellent video quality at an affordable price, it’s perfect for stores, hotels, schools, banks and offices.



AXIS M3045-V gives you sharp HDTV 1080p video quality. The camera offers a horizontal field of view of 106°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.



Sharp images. Low bandwidth



Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.



Thanks to digital pan/zoom/tilt (PTZ) capabilities and multi-view streaming, AXIS M3045-V lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera which keeps the installation and maintenance time and costs low. Plus it is one more way that AXIS M3045-V minimizes bandwith and storage needs.



Live streaming to a public monitor



AXIS M3045-V features an HDMI output that lets you connect your network cameras to a public monitor to show you have video surveillance in place.



Fits in your hand – fits in anywhere



Small and compact, AXIS M3045-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.



Installation that’s as easy as 1, 2, 3



To keep implementation costs low, AXIS M3045-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3045-V is also vandal and dust resistant for optimal performance and minimal downtime.
CertificationEN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B,\nICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Connectivity technologyWired
Depth101 mm
Ethernet LAN (RJ-45) ports1
Form factordome
Height56 mm
Housing materialAcrylonitrile butadiene styrene (ABS),Polycarbonate
International Protection (IP) codeIP42
Maximum resolution1920 x 1080 pixels
Minimum illumination0.25 lx
Mounting typeCeiling/wall
Operating temperature (T-T)0 - 45 °C
Optical sensor size1/3 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal106 °
Viewing angle, vertical59 °
Weight170 g
Width101 mm
Number of cameras1

0804-001.pdf

Axis M3045-V Data Sheet

Download (484.43k)
