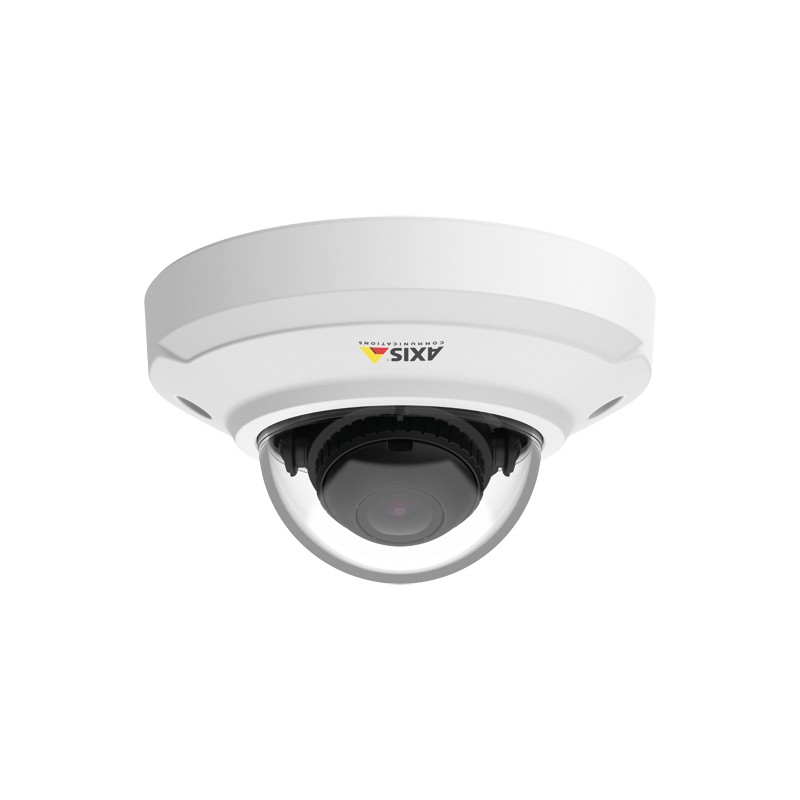

Axis M3044-V
Axis M3044-V Axis M3044-V Axis M3044-V Axis M3044-V

Axis M3044-V

IP, 1/3” CMOS, 1280x720, HDTV 720p, WDR, 512 MB RAM, 256 MB Flash, Pan/Tilt/Rotation, 1 x Fast Ethernet RJ-45, microSD/microSDHC/microSDXC, PoE

0802-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Axis quality at an affordable price



If you want an affordable fixed mini dome surveillance camera that offers excellent video quality, this is it. AXIS M3044-V is perfect for stores, hotels, schools, banks and offices.



AXIS M3044-V gives you sharp HDTV 720p video quality. The camera offers a horizontal field of view of 82°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.



Sharp images. Low bandwidth



Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.



Fits in your hand – fits in anywhere



Small and compact, AXIS M3044-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.



Installation that’s as easy as 1, 2, 3



To keep implementation costs low, AXIS M3044-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3044-V is also vandal and dust resistant for optimal performance and minimal downtime.
CertificationEN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B,\nICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Connectivity technologyWired
Depth101 mm
Ethernet LAN (RJ-45) ports1
Form factordome
Height56 mm
Housing materialAcrylonitrile butadiene styrene (ABS),Polycarbonate
International Protection (IP) codeIP42
Maximum resolution1280 x 720 pixels
Minimum illumination0.25 lx
Mounting typeCeiling/wall
Operating temperature (T-T)0 - 45 °C
Optical sensor size1/3 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal82 °
Viewing angle, vertical44 °
Weight170 g
Width101 mm
Number of cameras1

0802-001.pdf

Axis M3044-V Data Sheet

Download (482.83k)
