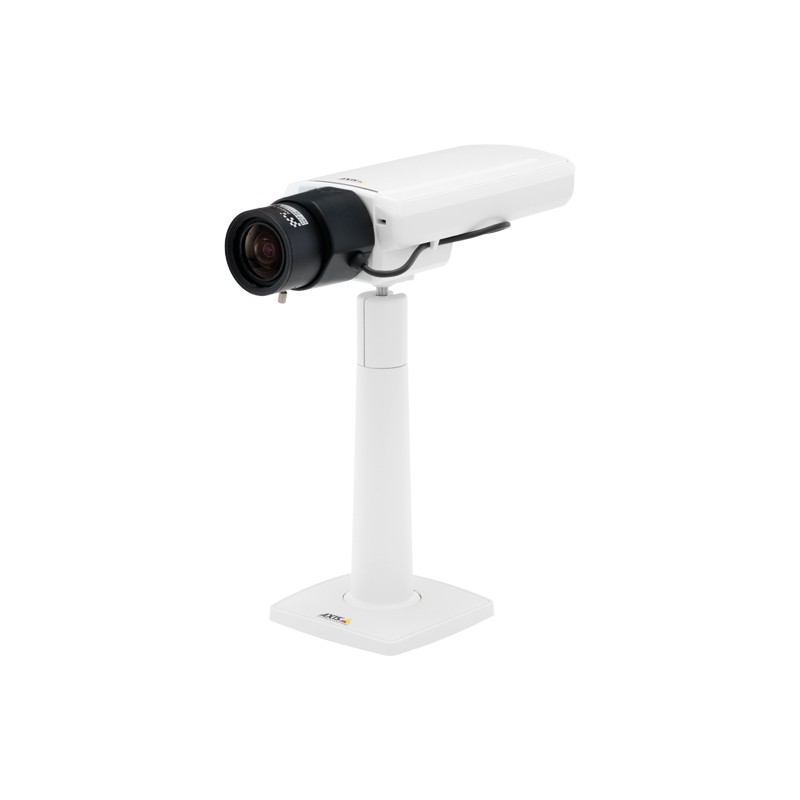

Axis P1364
Axis P1364 Axis P1364 Axis P1364

Axis P1364

HDTV 720p, 50/60 fps, WDR

0689-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Outstanding light sensitivity

AXIS P1364 Network Camera has outstanding light-sensitivity and delivers superior HDTV 720p video at 50/60 frames per second in H.264 and Motion JPEG. The day/night camera features a P-Iris lens for optimal image clarity, in addition to digital PTZ and multi-view streaming. Two-way audio, audio detection, video motion detection, active tampering alarm and a microSD/microSDHC slot for optional local storage are also supported. AXIS P1364 is ideal for banking installations, as well as for city surveillance and critical infrastructure applications.



WDR – Forensic Capture

With WDR – Forensic Capture, the video is highly optimized for forensic purposes and provides great levels of detail – even in scenes with complex light conditions. Furthermore, AXIS P1364 includes the ability to seamlessly transition between WDR and Lightfinder mode.



Smooth installation

AXIS P1364 is delivered with the AXIS T91B21 Stand, allowing for discreet cable management. In addition, installation is streamlined with the aid of remote back focus, pixel counter and Power over Ethernet.



Zipstream technology and cable management

Axis’ Zipstream technology built into AXIS P1364 greatly reduces bandwidth and storage requirements. AXIS P1364 is delivered with the AXIS T91B21 Stand, allowing for discreet cable management.
CertificationEN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, C-tick AS/NZS CISPR 22 Class A, KCC KN22 Class A, KN24, IEC/EN/UL 60950-1
Connectivity technologyWired
Depth78 mm
Ethernet LAN (RJ-45) ports1
Form factorbullet
Height46 mm
Housing materialZinc
Maximum resolution1280 x 960 pixels
Minimum illumination0.1 lx
Mounting typeDesk
Operating temperature (T-T)0 - 55 °C
Optical sensor size1/3 "
Placement supportedIndoor & outdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal92.3 °
Viewing angle, vertical67.9 °
Weight630 g
Width205 mm
Number of cameras1

0689-001.pdf

Axis P1364 Data Sheet

Download (350.58k)
