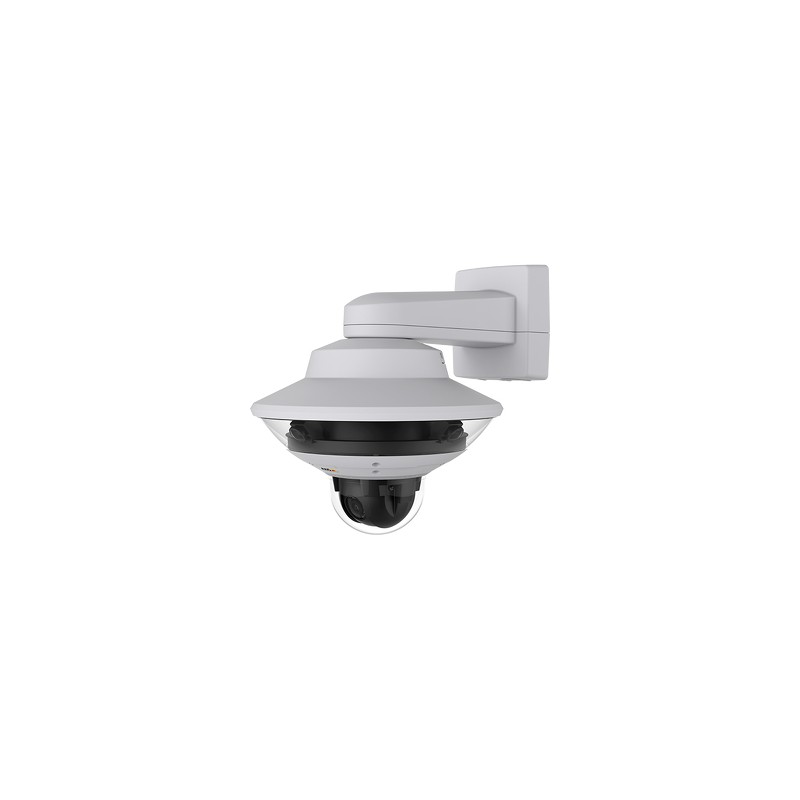

Axis Q6000-E 50Hz Mk II
Axis Q6000-E 50Hz Mk II Axis Q6000-E 50Hz Mk II

Axis Q6000-E 50Hz Mk II

4 x 1/2.8” CMOS, 2 MP, PTZ, 1280 x 720, IP66, PoE

01005-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Full 360° overview

- One-click PTZ control

- Exchangeable and tiltable lenses

- Axis’ Zipstream technology

- Compatible with any AXIS Q60-E model



AXIS Q6000-E Mk II is ideal for city surveillance applications such as monitoring of public squares and parking lots and other open areas. It features four 2-megapixel sensors to provide a complete 360° field of view over large areas.



AXIS Q6000-E Mk II is designed for integration with any AXIS Q60-E camera, creating a solution that goes from overview to detail in a single click. In other words, AXIS Q6000-E Mk II gives you the big picture while AXIS Q60-E lets you capture every detail with great precision simultaneously.



Zero in on problem areas

AXIS Q6000-E Mk II also give you the option of replacing the standard lens in one or more sensors with either a 6 mm or 16 mm tiltable lens and upgrading the resolution to HDTV 1080p. Then you can use that sensor to focus on an area of particular interest.



Sharp images. Low bandwidth.

AXIS Q6000-E Mk II also features Axis' Zipstream technology, which significantly lowers bandwidth and storage requirements while preserving high-quality images and forensic detail.



Quick and easy installation

Any AXIS Q60-E is quickly and easily mounted inside the AXIS Q6000-E Mk II. There’s no need for extra mounting brackets or other extra equipment because the two cameras use the same brackets and network cable. Power over Ethernet is supplied to both cameras through AXIS Q6000-E Mk II, which simplifies installation even more.
CertificationEN 55032 Class A, EN 55024, IEC 62236-4, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 50121-4, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, ITE, RCM AS/NZS CISPR 22 Class A, KCC KN22 Class A, KN24, IEC/EN/UL 60950-1, IEC/EN
Connectivity technologyWired
Ethernet LAN (RJ-45) ports3
Form factordome
Frame rate30 fps
Height308 mm
Housing materialAluminium,Polycarbonate
International Protection (IP) codeIP66
Maximum resolution1280 x 720 pixels
Minimum illumination0.3 lx
Mounting typeCeiling/wall
Operating temperature (T-T)-30 - 50 °C
Optical sensor size1/2.8 "
Placement supportedIndoor & outdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPSc , SSL/TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG
Viewing angle, horizontal152 °
Viewing angle, vertical85 °
Number of cameras1

01005-001.pdf

Axis Q6000-E 50Hz Mk II Data Sheet

Download (527.15k)
