Axis F1004
Axis F1004 Axis F1004 Axis F1004 Axis F1004 Axis F1004 Axis F1004 Axis F1004

Axis F1004

1/4" (effective) progressive scan RGB CMOS, F2.5, 1280 x 720, WDR, 0.5 lux, 1/24500 s to 1/6 s, -20 to 50°C, 27 x 20 x 18 mm, 128 g

01003-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Extremely discreet surveillance

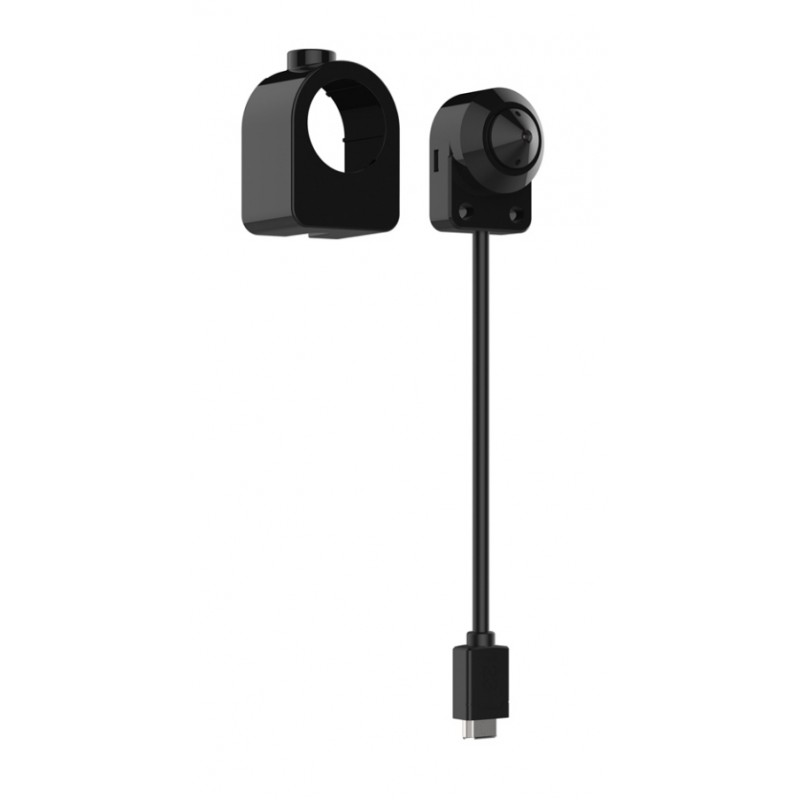

AXIS F1004 Pinhole Sensor Unit has a pinhole lens for extremely discreet indoor video surveillance. Only a very small hole would be visible externally. It is ideal for use in retail stores, ATMs, and ticket/vending and health monitoring machines. The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket.



AXIS F1004 PInhole offers a 57º horizontal field of view, a 720p video resolution, and good low-light performance in color. It comes with a detachable 8-m (26 ft) cable for connection to an AXIS F Main Unit.
Connectivity technologyWired
Depth20 mm
Frame rate30 fps
Height18 mm
Housing materialAluminium
Maximum resolution1280 x 720 pixels
Minimum illumination0.5 lx
Operating temperature (T-T)-20 - 50 °C
Optical sensor size1/4 "
Placement supportedIndoor
Sensor typeCMOS
Viewing angle, horizontal57 °
Viewing angle, vertical31 °
Weight14 g
Width27 mm
Number of cameras1

01003-001.pdf

Axis F1004 Data Sheet

Download (584.62k)
