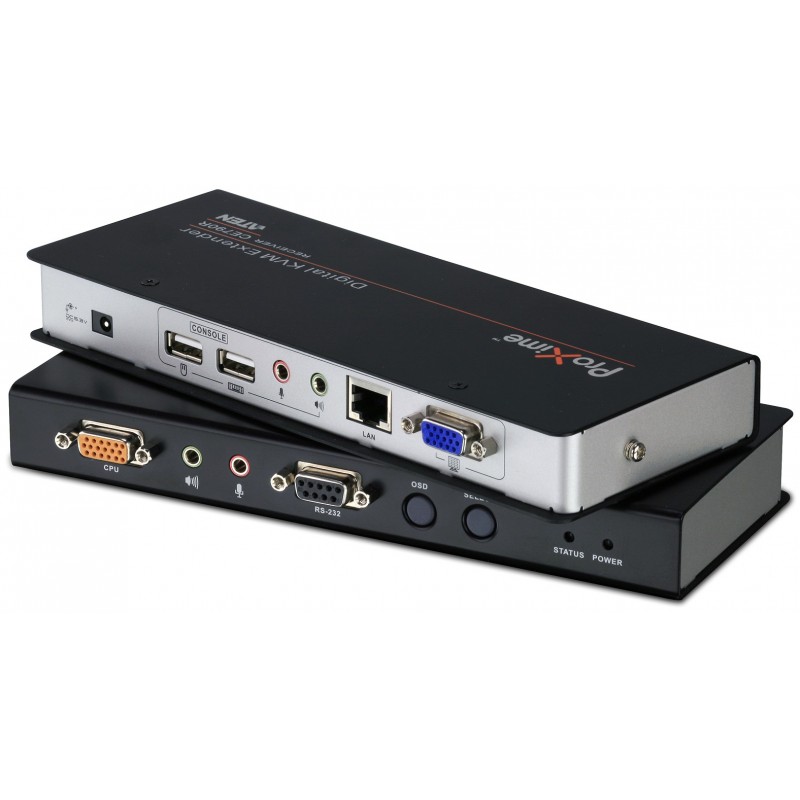

Aten CE790 Digital KVM Extender

Aten CE790

Digital USB VGA KVM Over LAN Extender with Audio and RS-232 (Transmitter + Receiver)

CE790

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features

- Remotely access computers on your KVM installation via intranet

- Dual console operation - control your system from both the transmitter and receiver USB consoles

- OSD (On Screen Display) on both the transmitter and receiver units

- Supports GUI operation*

- No software required - an HTTP server is embedded in both units

- Built-in ASIC for greater reliability and compatibility

- USB Keyboard and USB Mouse Ports

- RS-232 serial ports** - allows you to connect to a serial terminal for configuration, or serial devices such as touchscreens and barcode scanners

- Audio enabled

- USB overcurrent detection and prevention

- High resolution video - up to 1920 x 1080

- Supports widescreen formats

- Ultra-High quality video mode

- Hot pluggable

- Rack mountable

- Firmware upgradable

- Auto-MDIX - automatically detects cable type



Package Contents

- 1x CE790T Digital KVM Extender (Transmitter)

- 1x CE790R Digital KVM Extender (Receiver)

- 1x USB KVM Cable (CE790T)

- 2x 0AD6-1605-24EG Power Adapters

- 1x Mounting Kit

- 1x User Instructions
Connectivity technologyWired
Maximum resolution1920 x 1200 pixels
Weight500 g
