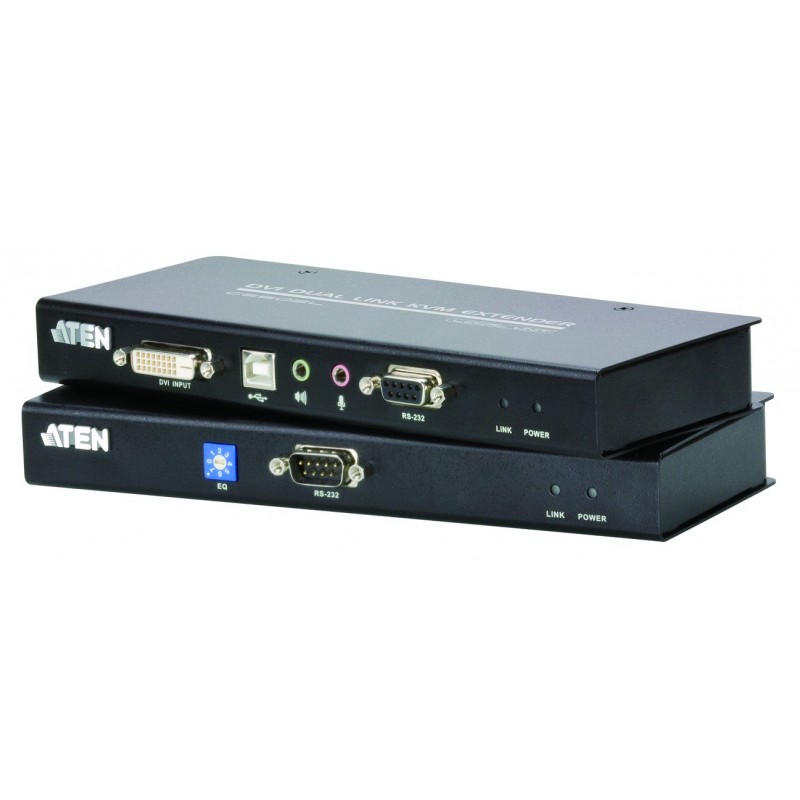

Aten CE602 DVI Dual Link KVM Extender
Aten CE602 DVI Dual Link KVM Extender Aten CE602 DVI Dual Link KVM Extender Aten CE602 DVI Dual Link KVM Extender

Aten CE602

USB DVI Dual Link KVM Extender with Audio and RS-232 (60m)

CE602

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



- Local and Remote Units connect at distances up to 60 m using Cat 5e cable

- Allows access to a computer or KVM installation from a remote console (up to 60 m)

- Supports DVI-D interface and allows transmission of DVI duallink signals

- Features ATEN technology that allows A/V transmission over one cat 5e cable

- The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals

- Manual compensation control to adjust signal strength in order to compensate for distance

- RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)

- Audio Enabled – supports stereo speakers and microphone

- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

- Supports Wide Screen formats

- Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions

- Hot pluggable

- Rack mountable

- Easy to install – no software required – connecting cables to the devices is all it takes

- Firmware upgrade



Package Contents



- 1x CE602L DVI KVM Extender (Local Unit)

- 1x CE602R DVI KVM Extender (Remote Unit)

- 1x 2L-7D02UD 1.8 m USB DVI-D Dual Link KVM Cable Set

- 2x 0AD6-1605-24EG Power Adapters

- 1x Mounting Kit

- 1x User Instructions
