HomeActive EquipmentSwitchesCisco 3850-24S-S

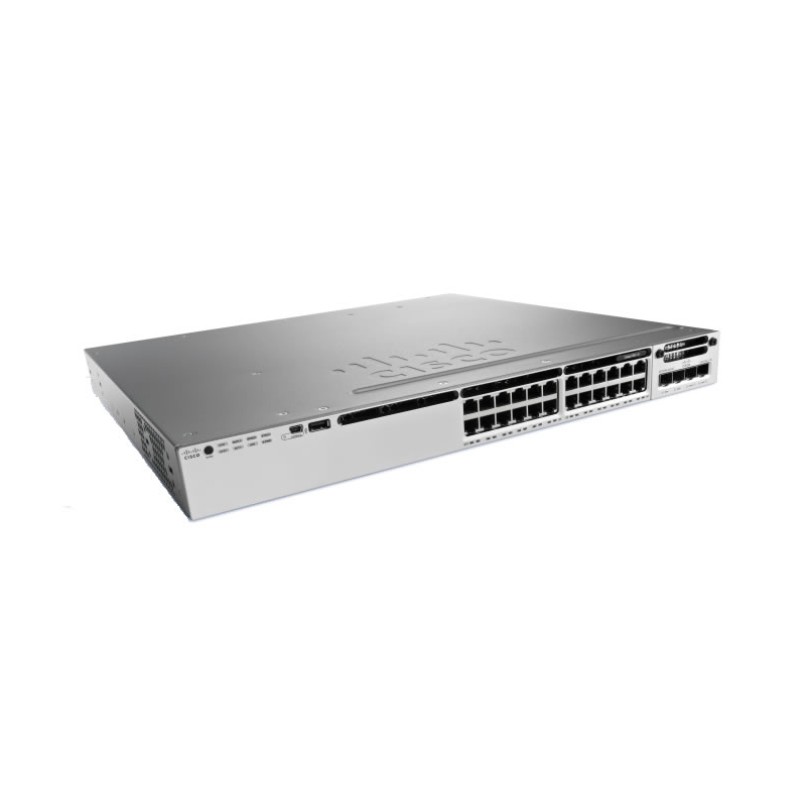

Cisco 3850-24S-S
Cisco 3850-24S-S Cisco 3850-24S-S

Cisco 3850-24S-S

24 Port, 68.4 Mpps, 350WAC

WS-C3850-24S-S

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.



- Integrated wireless controller capability with:

- Up to 40G of wireless capacity per switch (48-port RJ45 models)

- Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)

- 24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with energy-efficient Ethernet (EEE)

- 24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with energy-efficient Ethernet (EEE)

- 12- and 24-port 1 Gigabit Ethernet SFP-based models

- 12- and 24-port 1/10 Gigabit Ethernet SFP+-based models

- 48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit Ethernet QSFP+ uplinks

- Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput[1]

- Cisco StackPower™ technology provides power stacking among stack members for power redundancy1

- Five optional uplink modules[2] with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet[3], 8 x 10 Gigabit Ethernet4, or 2 x 40 Gigabit Ethernet QSFP+[4] ports

- Dual redundant, modular power supplies and three modular fans providing redundancy

- Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 rack unit (RU) form factor

- Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor

- Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF), and enhanced security features

- Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features

- Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
10G supportNo
CertificationRoHS
Depth450 mm
Form factor1U
Height45 mm
Operating temperature (T-T)-5 - 45 °C
SafetyUL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GOST, NOM
Weight7030 g
Width445 mm

WS-C3850-24S-S.pdf

Cisco Catalyst 3850 Data Sheet

Download (1.38M)
