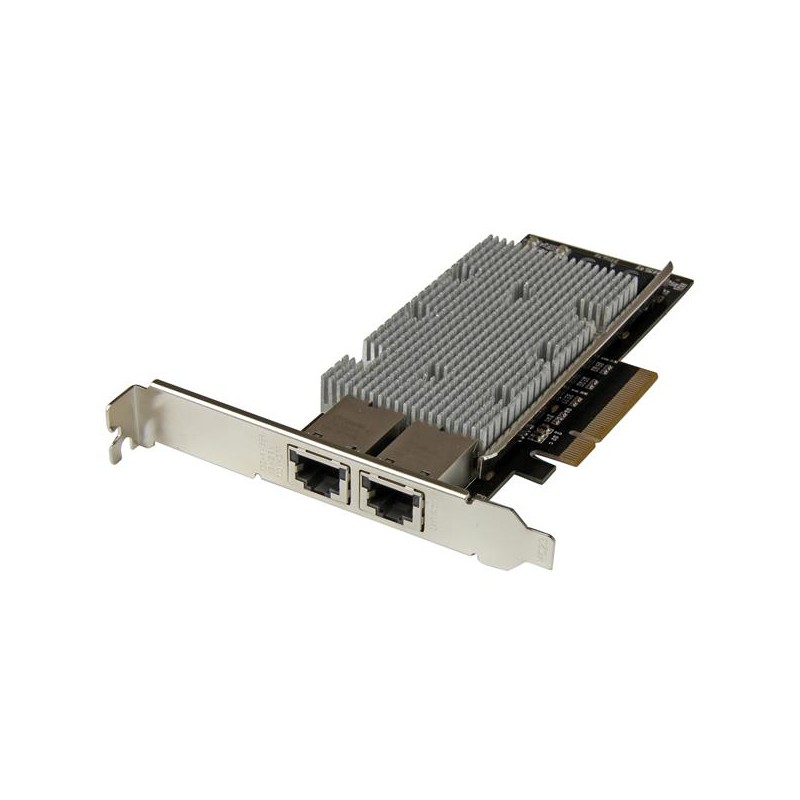

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - 10GbE Network Interface Card with Intel X540 Chip

ST20000SPEXI

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.



Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It’s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, Wake-On LAN and Auto-MDIX.

Reliable, high-performance connectivity



This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.



Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.

Easy installation



With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.



The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connectivity technologyWired
Depth153 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Height120 mm
Host interfacePCI-E
Operating temperature (T-T)5 - 50 °C
Weight150 g
Width18 mm

ST20000SPEXI.pdf

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip Data Sheet

Download (210.35k)
