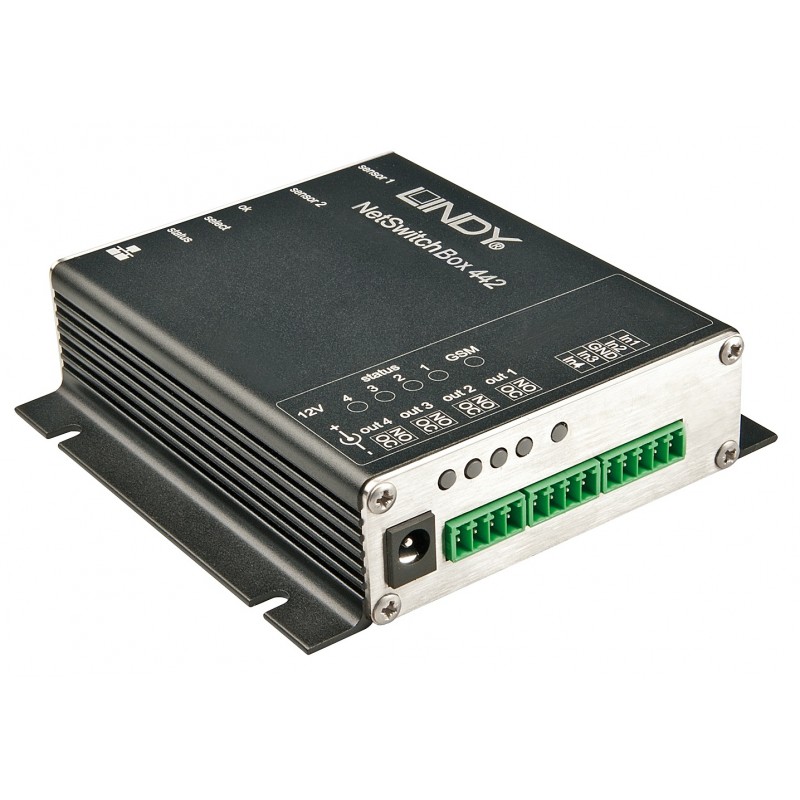

Lindy NetSwitchBox 442
Lindy NetSwitchBox 442 Lindy NetSwitchBox 442 Lindy NetSwitchBox 442

Lindy NetSwitchBox 442

NetSwitchBox 442, 10/100 Mbit 10BaseT Ethernet, DHCP, RJ45, 105 x 105 x 28 mm, 212 g

20918

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The NetSwitchBox 442 provides 4 potential-free switching outputs, 4 passive inputs, and 2 sensor inputs which allow for the switching of small signals (up to 24V), the interrogation and visualisation of passive contacts (e.g. door contacts), as well as the interrogation of two temperature- and/or temperature/moisture sensors. The data are requested and visualised on a Web site generated by the device. The data can be evaluated via SNMP or Syslog.



Power adapter not included in delivery. Suitable power adapter: LINDY - Art.No. 73803.





- Four individually switchable, potential-free relay outputs (no and nc), 24 V switching voltage.

- Four autonomous switching inputs.

- Two inputs for temperature- or hybrid sensors (temperature & moisture).

- Each switching input can either be used passively (e.g. called by door contact, smoke alarm, etc) or triggered by an input voltage of up to 24 V (electrically isolated through an optocoupler).

- States of inputs/outputs are indicated using two-Colored LEDs on the front.

- Outputs can be switched manually from the unit.

- All platforms - controlled from Web browser.

- Switchable from all PCs via Web interface and SNMP set in the network (also over Internet).

- Watchdog function for the switching contacts (monitor connected network devices through regular pings. The corresponding output will be reset if the unit stops responding).

- Batch mode allows you to switch the relay contacts and, after a configurable time period, make it return to its previous state automatically.

- Dynamically assign an IP address via DHCP or manual assignment of a fixed IP address.

- Firmware update via Ethernet while unit is running (without needing to restart the power ports)

- SNMP support (SNMPv1, SNMPv2c).

- SNMP traps (SNMPv1, SNMPv2c).

- Syslog support.

- Access protection via IP access control.

- Access protection via optional HTTP password.

- Basic, flexible configuration via Web browser, Windows program GBL_Conf or Linux program gblc.

- Powered via PoE or optional power adapter (12 V).

- Designed and manufactured in Germany .
10G supportNo
Depth105 mm
Height28 mm
Operating temperature (T-T)-10 - 50 °C
Weight212 g
Width105 mm

20918.pdf

Lindy NetSwitchBox 442 Data Sheet

Download (56.11k)
