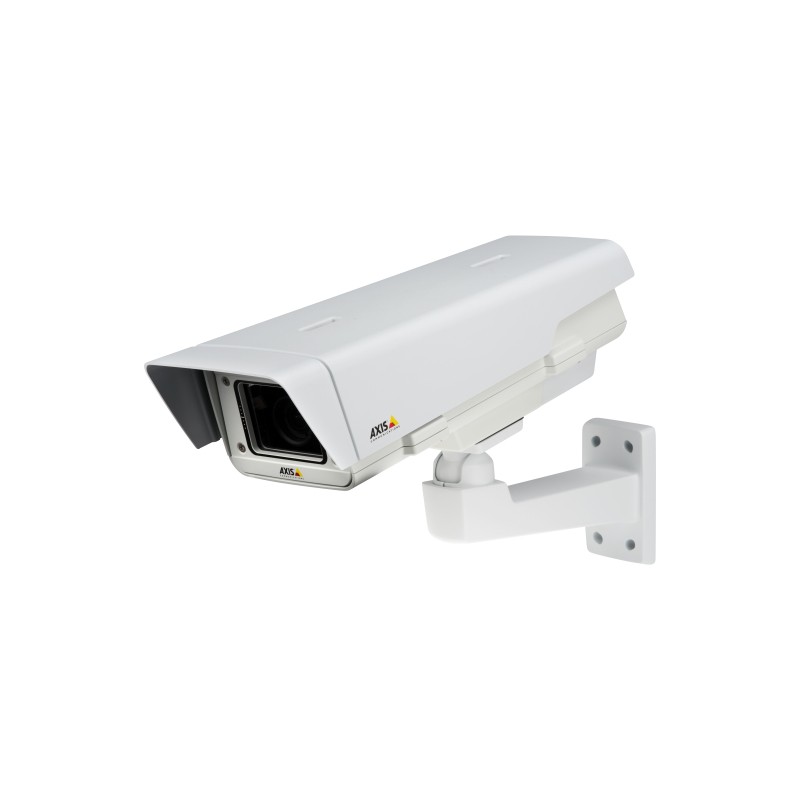

Axis Q1775-E
Axis Q1775-E Axis Q1775-E Axis Q1775-E

Axis Q1775-E

HDTV 1080p, 10x, WDR, CMOS 1/2.8", FHD, H.264, 512 MB RAM, 128 MB Flash, IP66

0752-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Flexible outdoor-ready day/night camera for excellent video

- HDTV 1080p

- 10x zoom and auto focus

- WDR – Dynamic Capture

- Excellent image quality in all lighting conditions

- Arctic Temperature Control



AXIS Q1775-E Fixed Network Camera is an outdoor-ready, day and night HDTV camera that covers great distances, providing both wide overviews and detailed images for identification purposes.



Together with compatible accessories, AXIS Q1775-E is designed for installation on buildings for monitoring entrances, exits and perimeters, and for pole mounting for surveillance of parking lots or general city surveillance purposes. The camera can deliver high-quality live video from highways, intersections, tunnels, bridges and main commuter routes in order to prevent accidents and to enable immediate responses. At critical infrastructure, AXIS Q1775-E can help detect, locate and identify intruders at gates, along perimeters and all the way into the critical room.



Exceptional image quality and excellent audio



Featuring 10x optical zoom, 12x digital zoom and auto focus, AXIS Q1775-E can instantly provide the desired field of view in perfect focus. The camera's Wide Dynamic Range with dynamic capture uses several images with different exposure times. Advanced image processing results in video with exceptional clarity and sharpness.



Together with external microphone and speaker, the camera offers excellent CD-quality audio in 48 kHz.



AXIS Q1775-E supports multiple, individually configurable H.264 and Motion JPEG streams in full frame rate. With day & night functionality and progressive output, it provides exceptional quality images even of fast moving objects in all lighting conditions – without any motion blur.



Compliance with SMPTE standards for HDTV



AXIS Q1775-E complies with the SMPTE (Society of Motion Picture and Television Engineers) HDTV standards in resolution, color representation and frame rate. The camera delivers HDTV 1080p resolution, 16:9 aspect ratio in full frame rate 60/50 fps.



Intelligent video capabilities and enhanced capacity for analytics



AXIS Q1775-E includes video intelligence, such as enhanced video motion detection and active tampering alarm, and enhanced capacity for analytics. In addition, it includes a Gatekeeper functionality which automatically zooms in when there is activity in the scene, and then zooms out after a preset time interval. The camera also supports the installation of intelligent video applications, such as people counting, and AXIS Camera Application Platform and AXIS Video Hosting System, as well as open programming interfaces for software integration, including ONVIF.
Connectivity technologyWired
Day/night modeYes
Depth343 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorbullet
Frame rate60 fps
Height107 mm
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution1920 x 1080 pixels
Minimum illumination0.05 lx
Mounting typeWall
Night visionYes
Operating temperature (T-T)-40 - 50 °C
Optical sensor size1/2.8 "
Placement supportedOutdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Viewing angle, horizontal75.9 °
Viewing angle, vertical45.7 °
Weight3600 g
Wi-FiNo
Wide Dynamic Range (WDR)Yes
Width129 mm

0752-001.pdf

Axis Q1775-E Data Sheet

Download (587.16k)
