Axis Q1775
Axis Q1775 Axis Q1775 Axis Q1775 Axis Q1775

Axis Q1775

HDTV 1080p, 10x, WDR 130dB@30fps / 90dB@60fps, CMOS 1/2.8", H.264, 512 MB RAM, 128 MB Flash

0751-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

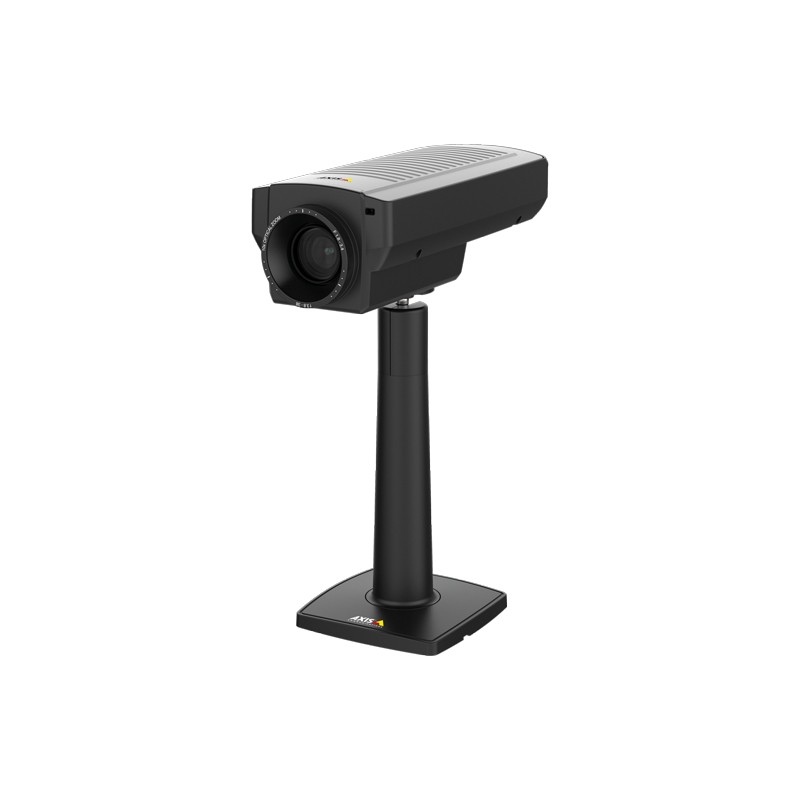

AXIS Q1775 Fixed Network Camera is an indoor, day and night HDTV camera that covers great distances, providing both wide overviews and detailed images for identification purposes. It can easily be integrated in other products such as explosion protected housings, Pan/Tilt solutions and other specially designed housings.



Exceptional image quality and excellent audio

Featuring 10x optical zoom, 12x digital zoom and auto focus, AXIS Q1775 can instantly provide the desired field of view in perfect focus. The camera's Wide Dynamic Range with dynamic capture uses several images with different exposure times. The advanced image processing results in video with exceptional clarity and sharpness. With its built-in microphone, it offers excellent CD-quality two-way audio in 48 kHz.



AXIS Q1775 supports multiple, individually configurable H.264 and Motion JPEG streams in full frame rate. With day & night functionality and progressive output, it provides exceptional quality images even of fast moving objects in all lighting conditions – without any motion blur.



Compliance with SMPTE standards for HDTV

AXIS Q1775 complies with the SMPTE (Society of Motion Picture and Television Engineers) HDTV standards in resolution, color representation and frame rate. The camera delivers HDTV 1080p resolution, 16:9 aspect ratio in full frame rate 60/50 fps.



Optional storage and flexible installation

The camera has a built-in slot for an SDHC/SDXCTM* memory card which makes it possible to store days of recording without any external equipment. Power over Ethernet (IEEE 802.3af) supplies power to the camera through the network, eliminating the need for power cables and reducing installation costs.



Intelligent video capabilities and enhanced capacity for analytics

AXIS Q1775 includes video intelligence such as enhanced video motion detection and active tampering alarm and enhanced capacity for analytics. In addition, it includes a Gatekeeper functionality which automatically zooms in when there is activity in the scene, and then zooms out after a preset time interval. The camera also supports the installation of intelligent video applications, such as people counting, and AXIS Camera Application Platform and AXIS Video Hosting System, as well as open programming interfaces for software integration, including ONVIF.
Connectivity technologyWired
Day/night modeYes
Depth182 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorbullet
Frame rate60 fps
Height59 mm
HTTPS encryptionYes
IP address filteringYes
Maximum resolution1920 x 1080 pixels
Minimum illumination0.05 lx
Mounting typeWall/Desk
Night visionYes
Operating temperature (T-T)0 - 50 °C
Optical sensor size1/2.8 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Viewing angle, horizontal75.9 °
Viewing angle, vertical45.7 °
Weight1085 g
Wi-FiNo
Wide Dynamic Range (WDR)Yes
Width79 mm

0751-001.pdf

Axis Q1775 Data Sheet

Download (622.69k)
