Axis M3037-PVE
Axis M3037-PVE Axis M3037-PVE Axis M3037-PVE Axis M3037-PVE

Axis M3037-PVE

Outdoor-Ready, 5MP, 1/3.2” RGB CMOS, D-PTZ, Day/Night, Microphone, Speaker, 512 MB RAM, 128 MB Flash, microSD/microSDHC/microSDXC, 1 x 10/100BaseT(X) RJ-45, PoE

0548-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

360°, 270° or 180° panoramic surveillance

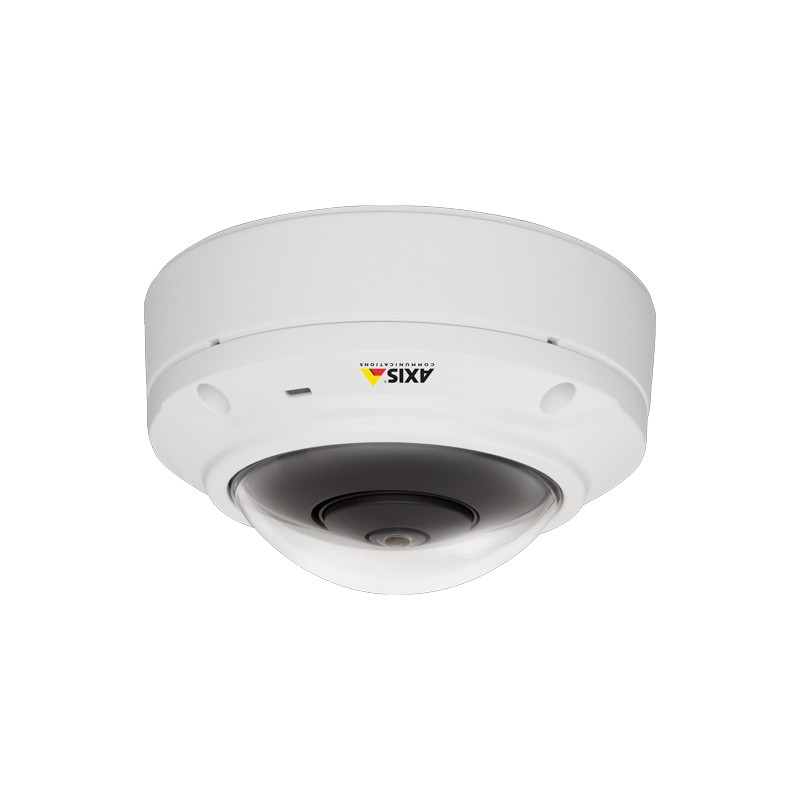

AXIS M3037-PVE Network Camera is a cost-effective video and audio surveillance solution that offers 360/270/180 views, indoors or outdoors, in any light conditions. The compact, vandal-resistant and weather-proof mini dome provides two-way audio with built-in microphone and speaker. The camera is suitable where audio and video need to be captured, such as at the entrance of a hotel, boutique, restaurant or office, where it can help detect activity, track the flow of people and improve situational awareness.



Different views



AXIS M3037-PVE offers different views: a 360° overview, a 270° corner view, panoramic views and quad views that have been dewarped for easy viewing. The quad view is suitable, for instance, when the camera is positioned at an intersection. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple, individually configurable H.264 and Motion JPEG video streams in up to 5 MP resolution at 12 fps can be sent simultaneously.



Advanced audio



AXIS M3037-PVE features built-in, weather-proof microphone and speaker. The camera provides full duplex audio with echo cancellation and noise reduction, and it supports Session Initiation Protocol (SIP) for easy integration with IP phone systems.



Easy and flexible installation



AXIS M3037-PVE can be mounted on a wall or ceiling. The factory-focused camera comes with a 2 m (6.6 ft.) network cable attached and is powered using Power over Ethernet, making installation quick and reliable.



Intelligent video and video management



AXIS M3037-PVE features video motion detection and active tampering alarm. The camera also supports the installation of intelligent video applications, such as people counting and cross line detection. It supports Session Initiation Protocol (SIP) for IP phone system integration, AXIS Camera Application Platform and AXIS Video Hosting System, as well as open programming interfaces for software integration, including VAPIX and ONVIF.



In addition, the camera’s built-in microSDHC™* card slot enables several days of recording to be stored locally on a memory card. When local storage is used together with the complimentary AXIS Camera Companion, users have an easy way to remotely view and manage video from up to 16 cameras per site.
CertificationNEMA 4X, IK10
Connectivity technologyWired
Day/night modeYes
Depth132 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate12 fps
Height73 mm
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution2592 x 1944 pixels
Minimum illumination0.06 lx
Mounting typeWall/Ceiling
Operating temperature (T-T)-30 - 50 °C
Optical sensor size1/3.2 "
Placement supportedOutdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH, SIP
Viewing angle, horizontal187 °
Viewing angle, vertical168 °
Weight740 g
Wi-FiNo
Width132 mm

0548-001.pdf

Axis M3037-PVE Data Sheet

Download (497.45k)
