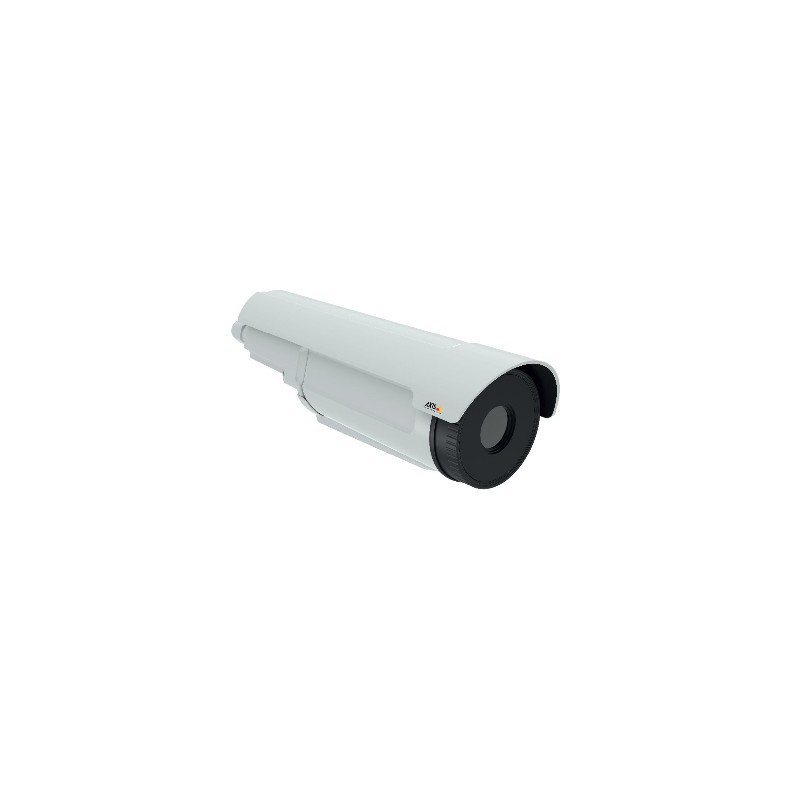

Axis Q2901-E PT
Axis Q2901-E PT Axis Q2901-E PT

Axis Q2901-E PT

9mm, 8.3 FPS, F 1.25, 35°, 336x256, H.264, 256 MB RAM, 128 MB Flash, RJ45, 1.8 kg

0646-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- PT mount-ready

- Temperature alarm

- Isothermal palettes

- Spot temperature reading

- High performance intelligent video



Temperature detection



AXIS Q2901-E PT Mount offers two kinds of alarms triggered by a deviation of the temperature: if the temperature goes above or below a set limit, or if the temperature increases too rapidly. The camera can detect the temperature of an object between -40 °C to 550 °C (-40 °F to 1022 °F).



Isothermal palettes



Isothermal imaging makes it possible to configure highlighted temperature-spans in the image. They help to define which temperature corresponds to which color. The Lower limit denotes the temperature where the colored part of the palette will start and all temperatures above this limit will stand out.



Spot temperature reading



This capability is used to view the temperature of a particular area of the image. The emissivity can also be adjusted (depending on the material characteristics) to get a more precise reading. Used as a visual aid for an operator



For a list of emissivity for different material, see here



More features



- MicroSD/SDHC memory card slot

- Network security using multiple user access levels, IP address filtering, HTTPS encryption, IEEE 802.1X authentication

- Supports Quality of Service (QoS) which helps secure the necessary bandwidth for streaming video and control commands over a network

- Supports Internet Protocol version 6 (IPv6) in addition to IP version 4 (IPv4)
CertificationEN 550 22 Class A, EN 50 12 1 - 4, EN 550 24, EN 6 1 000 - 3 - 2, EN 6 1 000 - 3 - 3, EN 6 1 000 - 6 - 1, EN 6 1 000 - 6 - 2, FCC, ICES - 003, VCCI, ITE, C - Tick AS/NZS CISPR22, KCC KN22, KN - 24
Connectivity technologyWired
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorbullet
Frame rate8.3 fps
Housing materialMetal
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution336 x 256 pixels
Operating temperature (T-T)-40 - 60 °C
Placement supportedOutdoor
Supported network protocolsIPv4/v6, HTTP , HTTPS c , SSL/TLS c , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3(MIB - II), DNS, DynDNS, NTP , RTSP , RTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Weight1800 g
Wi-FiNo

0646-001.pdf

Axis Q2901-E PT Data Sheet

Download (297.91k)
