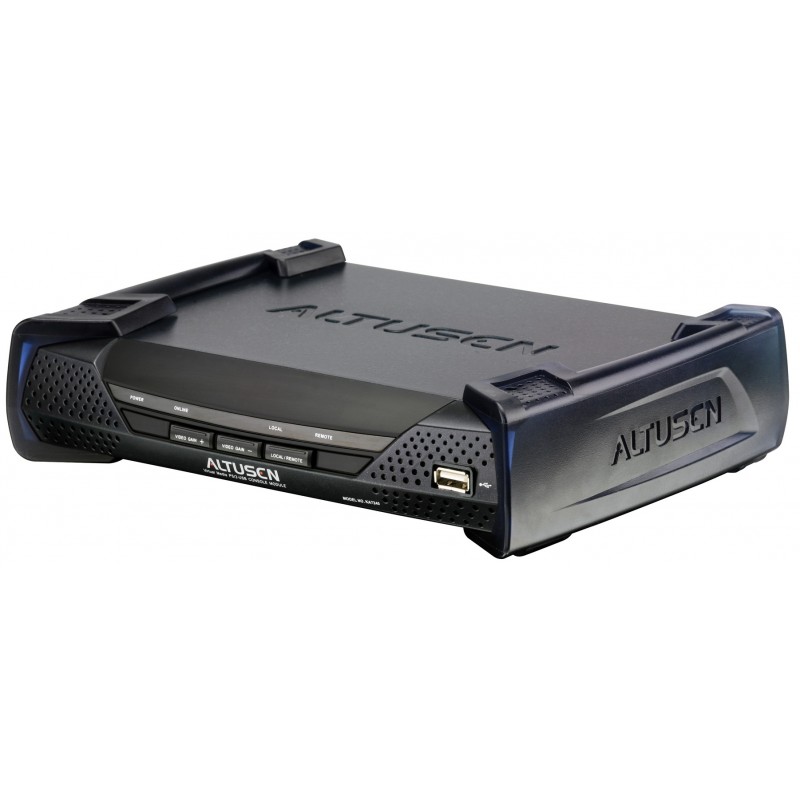

Aten KA7240
Aten KA7240 Aten KA7240 Aten KA7240

Aten KA7240

Combo (PS/2 & USB - VGA) Console for Matrix KVM, with Audio & Virtual Media Support

KA7240

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)

- Virtual Media Support

- Audio enabled

- Enhanced video quality via automatic skew compensation support

- Supports PS/2 and USB keyboards and mice(Console)

- Switch between your workstation computer and the matrix KVM switch

- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers

- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point

- Connects to matrix KVM switch via Cat 5e/6 cable

- Superior video quality – 1280 x 1024 @ 60 Hz for up to 300 m

- Manual video gain control for fine tuning

- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus

- Firmware upgradeable



Requirements



- 1x KA7240 Virtual Media PS/2-USB Console Module with stacking brackets

- 1x 2L-5302P KVM Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x RS-232 Cable (DB-9F to DB9-F)

- 1x Grounding Wire

- 1x Rack Mount Kit

- 1x User Instructions
Depth171.5 mm
Height54.8 mm
Operating temperature (T-T)0 - 50 °C
Weight1260 g
Width227.1 mm
