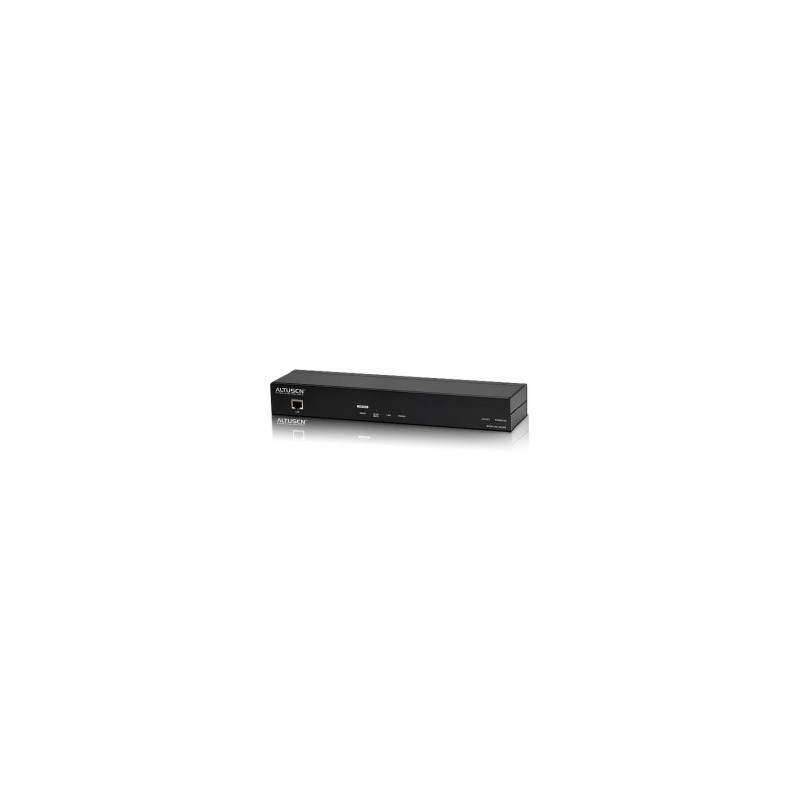

Aten KN1000
Aten KN1000 Aten KN1000 Aten KN1000 Aten KN1000

Aten KN1000

All-in-one Over IP Control unit (KVM + Serial + Power), with Virtual Media Support

KN1000

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



Hardware

- Provides over-IP capability to servers or KVM switches that do not have built in over-IP functionality*

- Built in single port Power Switch

- Supports PS/2, USB, Sun Legacy (13W3)** and serial (RS-232) connectivity

- Local console provides PS/2, and USB keyboard and mouse support

- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices

- Virtual Media Support

- High video resolution – up to 1600 x 1200 @ 60Hz- 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hzwith 24 bit color depth for remote sessions

* Compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758, CS1708A, CS1716A, ACS1208A, ACS1216A, KH2508A, KH2516A, KH1508A, and KH1516A

- Some of the KN1000’s features may not be supported, depending on the functionality of the connected KVM switch. (For example, some switches do not support virtual media.)

- Some features found on the connected KVM switches may not be supported on the KN1000. (For example, the CS1754’s audio.)

** Requires CV130A converter purchase



Management

- Up to 64 user accounts – up to 32 users simultaneously share the control

- End session feature – administrators can terminate running sessions

- Event logging and Windows-based Log Server support

- Critical system event notification via SMTP email; SNMP trap and Syslog support

- Remote Firmware upgradable

- Serial console management – serial terminal access. Access the device connected to KN1000 via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions

- PPP mode (modem) dial-in/dial out support for out-of-band, and low bandwidth operation

- Port Share Mode allows multiple users to gain access to a server simultaneously

- Integration with ALTUSEN CC2000 Management software

- Power Over the NET™ integration for remote power control

- Remote power on and off control function with Wake on LAN

- On/Off scheduling for power outlet. Power management tasks can be scheduled on a daily, weekly, monthly or user-specified time basis

- Safe shutdown support

- Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time- it automatically takes an action assigned

- DDNS (Dynamic Domain Name System)

- Export/import user account and configuration settings

- Manage browser access methods (disable browser, http, or https)



Ease-to-Use Interface

- Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required

- Full-screen or sizable and scalable Virtual Remote Desktop

- Magic Panel – a special hideaway control panel with configurable function icon



Advanced Security

- Smart Card /CAC Reader Support

- External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

- 128-bit SSL encryption to protect password when users log in

- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption

- IP/MAC Filter for enhanced security protection

- Supports password protection

- Private CA



Virtual Media

- Virtual media enables file applications, OS patching, software installation and diagnostic testing

- Works with USB enabled servers in operating system and BIOS level

- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images



Virtual Remote Desktop

- BIOS-level access

- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

- Full screen video display or scalable video display

- Message Board for communication among remote users

- On-screen keyboard with multilanguage support

- Mouse Dynasync™

- Exit Macros support



Package Contents



- 1x KN1000 KVM Over the NET™

- 1x 2L-5201P PS/2 KVM Cable

- 1x 2L-5201U USB KVM Cable "

- 1x Custom Console Cable Set

- 1x USB 2.0 Virtual Media Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x Outlet Power Cord

- 1x Rack Mount Kit

- 1x Software CD

- 1x User Instructions
CertificationCN ZL 02129894.7, CN ZL 02824593.8, JP 4558319, JP 4651633, TW 199673, TW 203183, TW I273415, US 6957287, US 7142721, US 7340556, US 7350091, US 747221
Connectivity technologyWired
Depth308.5 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Height42 mm
MaterialMetal
Maximum resolution1600 x 1200 pixels
Operating temperature (T-T)0 - 40 °C
Weight860 g
Width81.5 mm
