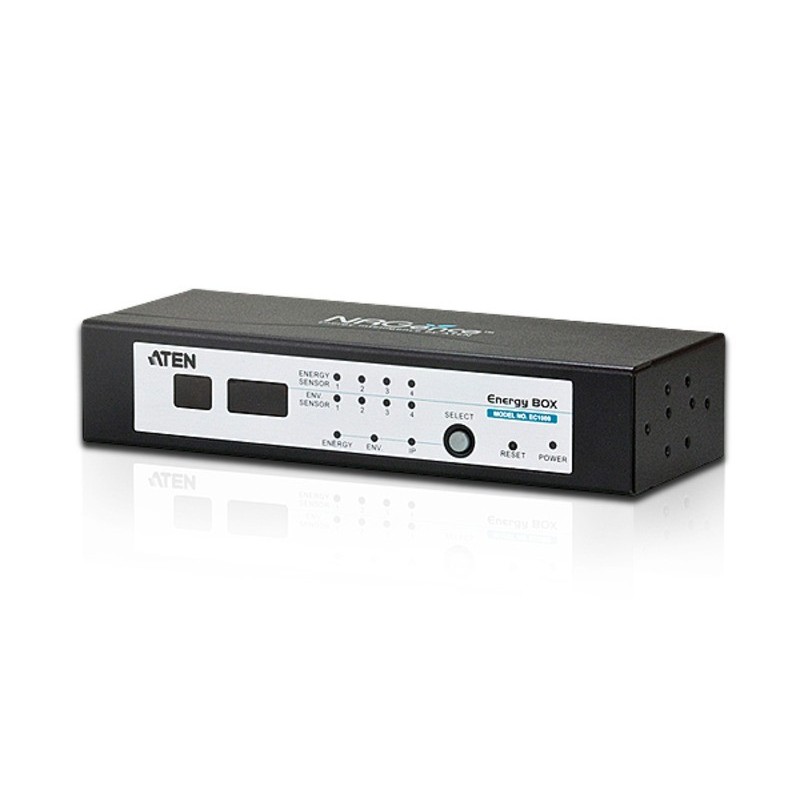

Aten EC1000 Energy Box
Aten EC1000 Energy Box Aten EC1000 Energy Box Aten EC1000 Energy Box Aten EC1000 Energy Box

Aten EC1000

Over IP PDU Metering Device

EC1000

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Operation

- Space saving 1U rack mounting with front and rear mounting

- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)

- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*

- Maximum Amperage Monitor 32A@100V~240V (Energy Box)

- 3 digit 7 segment front panel LED displays current/sensor/IP address information

- Threshold monitoring for:

- 1.Current

- 2.Temperature

- 3.Humidity

- 4.Differential pressure

- Threshold alerting through:

- 1. Local: audible alarm and LED lights

- 2. Remote: SMTP/SNMP trap/Syslog



Management

- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box

- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management

- Management through eco Sensors Energy Management Software or 3r party SNMP manager

- Supports name assignment for individual Energy PDUs

- Event Logging – 128 line event log

- Syslog support

- F/W upgradable



Remote Access

- Remote management via TCP/IP using built in 10/100Mbps Ethernet port

- Management via built in browser based GUI

- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping

- Supports SNMP Manager V1, V2, V3



Security

- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL

- RADIUS authorization and authentication



Package Contents

- 1x EC1000 Energy Box

- 1x 0AD8-8605-24EG Power Adapter

- 1x Mounting Kit

- 4x RJ-45 Cables

- 1x CD ROM (Manual, eco Sensors Software)

- 1x User Instructions
Ethernet LAN (RJ-45) ports4
Operating temperature (T-T)0 - 50 °C
Weight590 g
