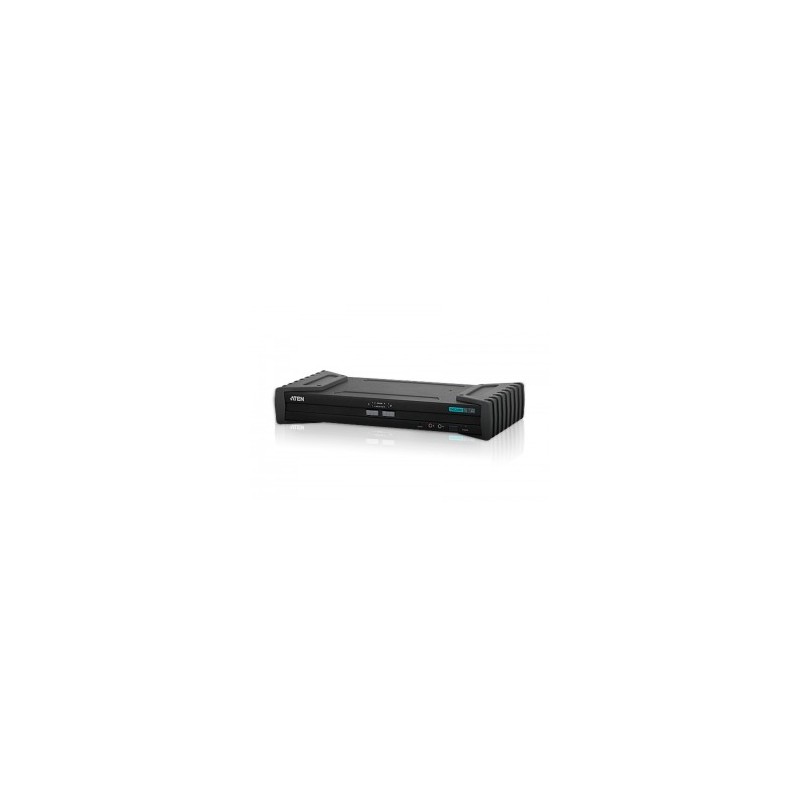

Aten CS1182
Aten CS1182 Aten CS1182 Aten CS1182 Aten CS1182

Aten CS1182

2-Port USB DVI Secure KVM Switch

CS1182

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



- 2-port USB DVI Dual-Link Secure KVM Switch

- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security

- One USB console controls 2 secure computers

- NIAP-certified — validated to Common Criteria EAL2+ security requirements

- Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching

- Isolated channel per port — makes it impossible for data to be transferred between computers

- Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components

- Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash

- Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components

- Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware

- Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch

- Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution

- Multiplatform support — Windows, Linux, Mac, and Sun

- Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)

- Rugged metal enclosure

- Built-in internal power

- Speaker and microphone support



Package Contents



- 1x CS1182 USB DVI Secure KVM Switch

- 1x 0AD8-0C05-24EG Power Cord

- 1x User Instructions
CertificationRoHS
Connectivity technologyWired
Depth169 mm
Height60.6 mm
MaterialMetal
Maximum resolution2560 x 1600 pixels
Operating temperature (T-T)0 - 40 °C
Weight2060 g
Width349 mm
