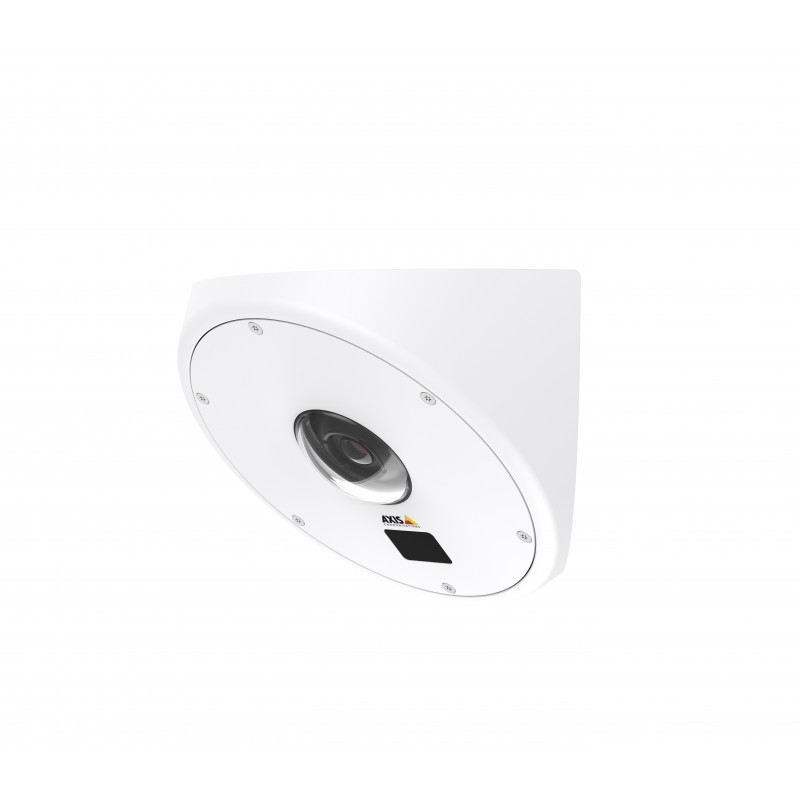

Axis Q8414-LVS
Axis Q8414-LVS Axis Q8414-LVS Axis Q8414-LVS Axis Q8414-LVS Axis Q8414-LVS Axis Q8414-LVS Axis Q8414-LVS

Axis Q8414-LVS

Q8414-LVS Network Camera, White

0710-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Designed to prevent



The unique corner-mount camera lacks ligature points while the anti-grip design meets the requirements for installations in correctional and medical facilities where there is an increasing need to prevent self-harm and avoid internal conflicts. The camera is available in two color versions, powder coated white (AXIS Q8414-LVS White) and brushed stainless steel (AXIS Q8414-LVS Metal)



Easy and safe cleaning



The water resistant casing allows for water hose cleaning; soapy water, or any other multi-purpose cleaning agents. AXIS Q8414-LVS camera supports both IP66- and NEMA 4X-rating.



Images and capabilities that capture



Supporting Lightfinder technology, AXIS Q8414-LVS can maintain colors even in very poor lighting conditions. And the P-Iris control provides images with an optimal depth of field, resolution, image contrast and clarity. A built-in invisible IR LED illuminator (940 nm) can be used for covert video surveillance in complete darkness. Together with a resolution of 1.3 Megapixel or HDTV 720p video stream and an horizontal angle of view up to 105°, the camera covers the entire room without blind spots.



Audio detection



Thanks to the built-in surface mounted high-quality microphone, audio detection can be used as a complement to an indoor video surveillance. Audio detection may be used as an alarm in order to identify urgent situation, such as the sound of fighting, screaming, slamming doors or gunshots. The audio does not need to be recorded, avoiding issues with local legislation, but it is intended to trigger an alarm. The audio feature can also be disabled.



Ease of installation



AXIS Q8414-LVS offers easy installation with remote zoom and focus for fine tuning of the picture from a computer as opposed to at the camera itself. Furthermore, the pixel counter assures that the required pixel resolution is met. Power over Ethernet supplies power to the cameras via the network, which eliminates the need for power cables and reduces installation costs.
CertificationEN 55022 B, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22 B, KCC KN-22 B, KN-24, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC/EN 60529 IP6
Connectivity technologyWired
Day/night modeYes
Depth255 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorcovert
Frame rate30 fps
Height215 mm
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution1280 x 960 pixels
Minimum illumination0.02 lx
Night visionYes
Operating temperature (T-T)0 - 50 °C
Optical sensor size1/3 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Wi-FiNo
