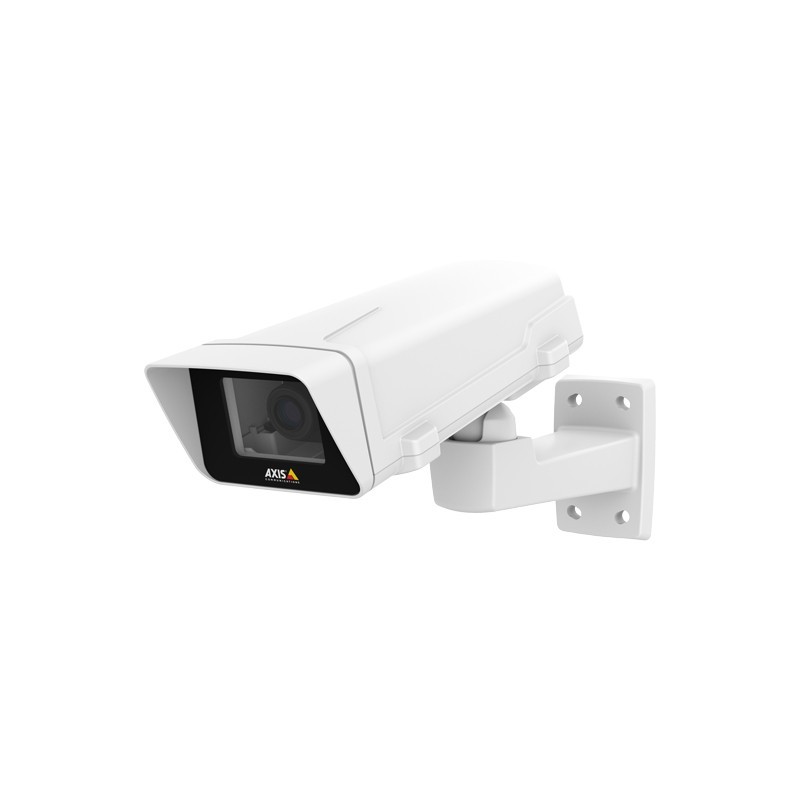

Axis M1125-E
Axis M1125-E Axis M1125-E

Axis M1125-E

IP, Outdoor, RGB CMOS 1/2.8", 1MP, 1920x1080, 512 MB RAM, 256 MB Flash, Digital PTZ, WDR, 10BASE-T/100BASE-TX PoE, microSD/microSDHC/microSDXC, IP66, NEMA 4X, IK10

0750-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.



Outdoor-ready video surveillance



The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).



Images optimized for forensic analysis



Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1125-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.



More video, less storage



AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.
CertificationNEMA 4X\nIK10
Connectivity technologyWired
Day/night modeYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorbox
Frame rate30 fps
Height137 mm
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution1920 x 1080 pixels
Minimum illumination0.05 lx
Mounting typeWall
Operating temperature (T-T)-20 - 50 °C
Optical sensor size1/2.8 "
Placement supportedOutdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH
Viewing angle, horizontal91 °
Viewing angle, vertical49 °
Weight1600 g
Wi-FiNo
