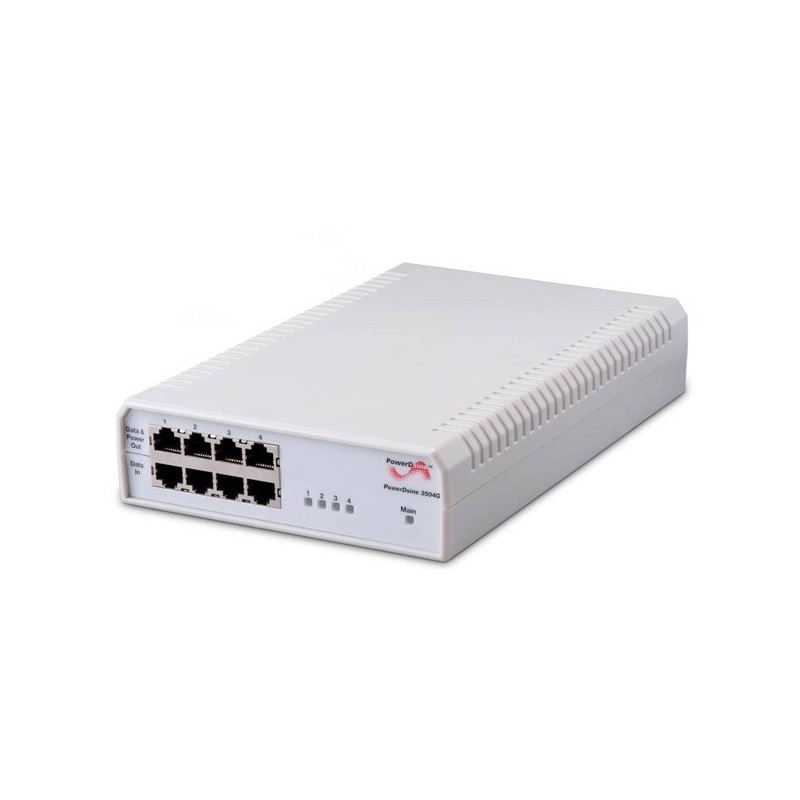

Microsemi PowerDsine PoE 4-Port Gig Midspan-802.3AF 4Port Small Footprint POE mi

Microsemi PowerDsine PoE 4-Port Gig Midspan-802.3AF 4Port Small Footprint POE mi

4 x RJ-45 Output, 110 - 240 V, 61.6 W (4 x 15.4W), 10/100/1000Mbps, 1U, 48.26 cm (19 ")

PD-3504G/AC

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Compact 4-port Gigabit Midspan for the enterprise market



The PowerDsine 3504G offers a cost effective, fully IEEE 802.3af compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. PowerDsine PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.



With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
10G supportNo
CertificationFCC Part 15 Class B EN 55022 Class B EN 55024 VCCI RoHS WEEE CE
Depth224 mm
Ethernet LAN (RJ-45) ports4
Height43 mm
Operating temperature (T-T)0 - 40 °C
SafetyUL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
Weight620 g
Width148 mm
