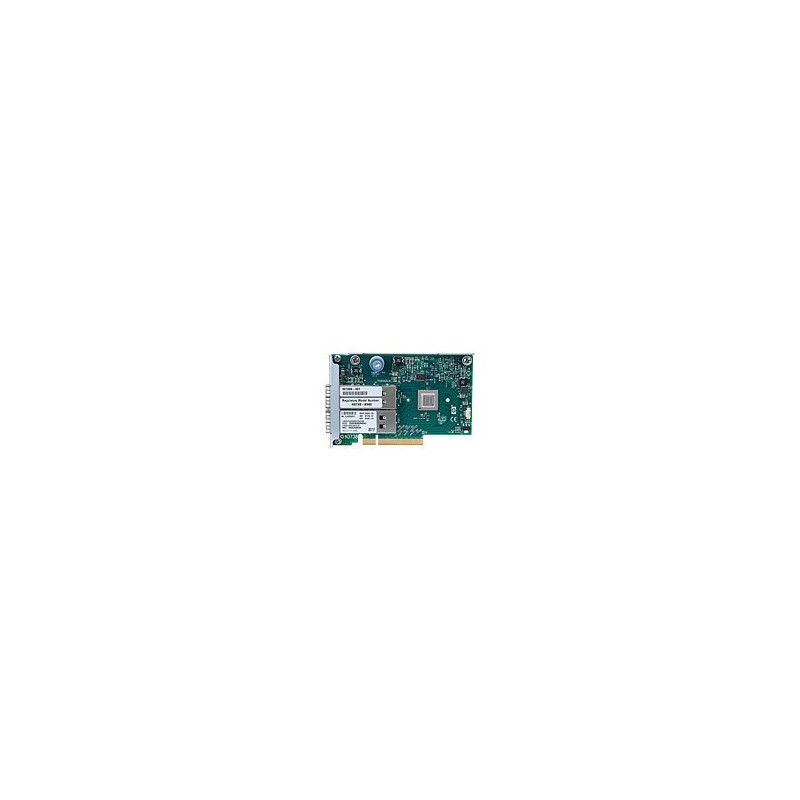

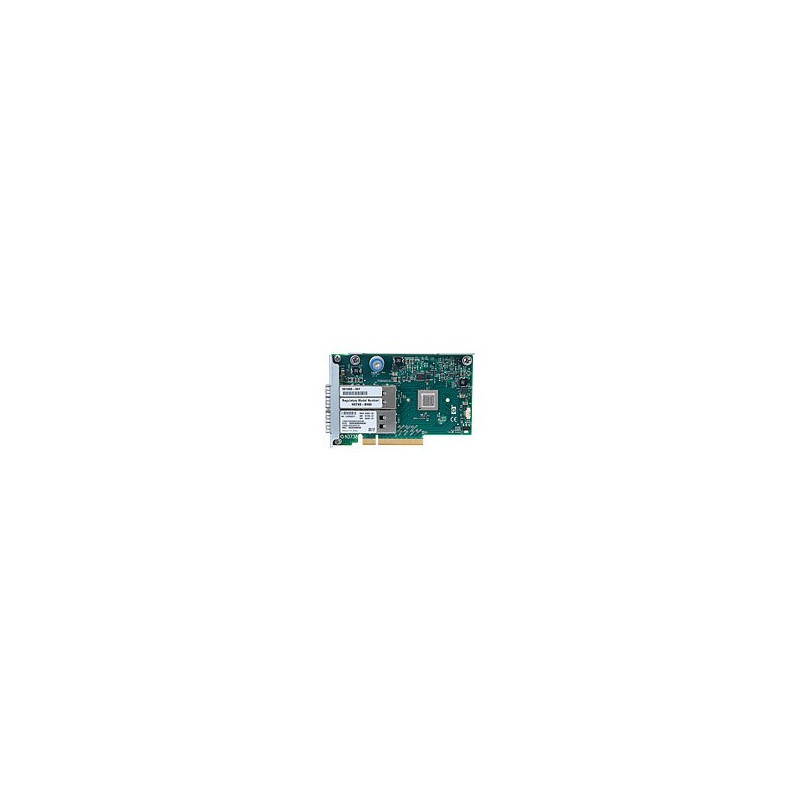

HP 649283-B21 network card & adapter
HP 649283-B21 network card & adapter HP 649283-B21 network card & adapter

Hewlett Packard Enterprise 649283-B21

2 x InfiniBand, PCIe, 10Gb/s,9.8W Max

649283-B21

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The next generation of HP Infiniband/Ethernet Adapters for select HP ProLiant SL, DL and ML servers, consists of three adapters, two with a new ALOM form factor known as FlexibleLOM for Racks (FLR), and one PCIe card:

- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544FLR-QSFP Adapter

- HP Infiniband QDR/Ethernet 10Gb 2P 544FLR-QSFP Adapter

- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544QSFP Adapter

Based on next-generation Mellanox ConnectX-3 technology and PCI Express 3.0 for unprecedented scalability and fabric flexibility, they can all function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card. Together with the next generation of HP Infiniband FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPC) and enterprise data centers.



Next Generation InfiniBand/Ethernet Adapters for Select HP ProLiant SL, DL, and ML Servers.

Performance driven ConnectX-3 architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation. PCI Express 3.0 x8. Maximum effective network bandwidth through hardware-based traffic segregation (Qos) and congestion control. Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments. Low power requirements, low cost per Gb/s bandwidth.
CertificationFCC, Class A ICES, Class A EN55022, Class A EN55024, Class A EN61000-3-2, Class A EN61000-3-3, Class A VCCI, Class A MIC, Class A BSMI, Class A
Connectivity technologyWired
Host interfacePCI-E
