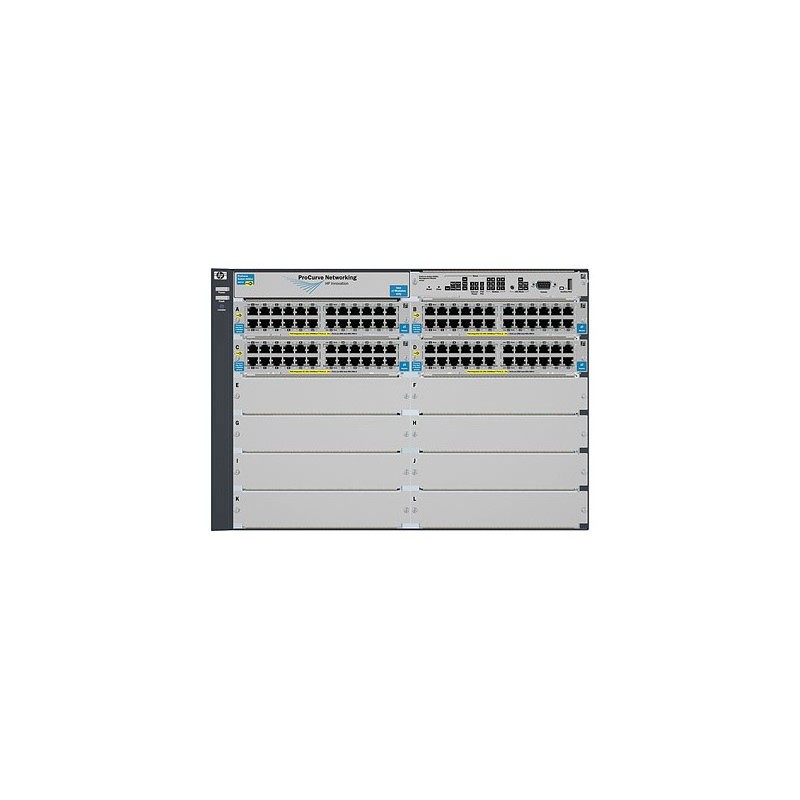

HP 5412-92G-PoE+-2XG v2 zl Switch with Premium Software

Hewlett Packard Enterprise E5412-92G-PoE+/2XG-SFP+ v2 zl

HP 5412-92G-PoE+-2XG v2 zl Switch with Premium Software

J9532A

Stock Due 08-08-2024

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Software-defined networking


• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths



Quality of Service (QoS)


• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



Management


• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network



Connectivity


• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)



Performance


• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs



Resiliency and high availability


• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments



Layer 2 switching


• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously

10G supportYes
Connectivity technologyWired
Form factor7U height
Operating temperature (T-T)32 - 131 °F
SafetyCSA, UL, IEC, EN
Supported network protocolsIPv6, SSHv6, SNTP, IGMPv3
Weight34180 g
Wi-FiNo
