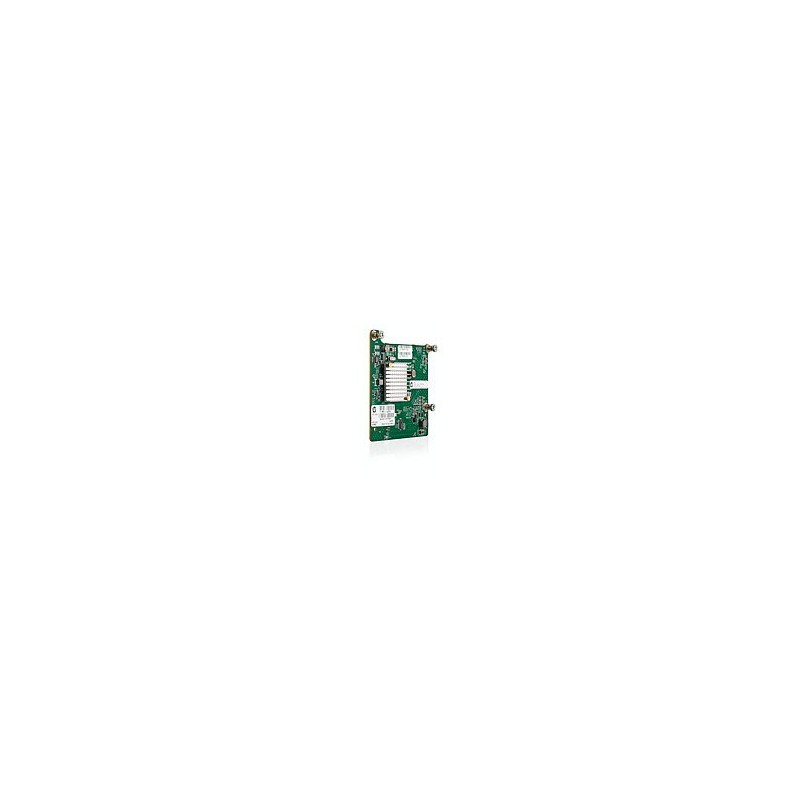

HP Flex-10 10Gb 2-port 530M Adapter
HP Flex-10 10Gb 2-port 530M Adapter HP Flex-10 10Gb 2-port 530M Adapter

Hewlett Packard Enterprise Flex-10 530M

2 Ports, Mezzanine, PCIe v2.0 x8, 10GbE, 900MB, Broadcom BCM 57810S, 12W Max

631884-B21

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The HP 530M is a dual-port 10GbE adapter, featuring the next generation, single-chip 10Gb Ethernet solution from Broadcom in a mezzanine form factor designed for HP BladeSystem c-Class Gen8 servers. The HP 530M FlexibleLOM adapter delivers full line-rate performance across all ports with low power consumption. The HP 530M provides high performance Ethernet connectivity with support for HP Virtual Connect Flex-10 interconnect technology, allowing the benefits of virtualization to extend beyond the server and into the rest of the infrastructure. The HP 530M supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors Technology enhances server performance while reducing energy use and expense.



Single-chip, dual-port 10Gb Ethernet mezzanine card designed for HP BladeSystem c-Class Gen8 servers.



20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate) to provide the network performance needed to improve response times and alleviate bottlenecks for the most demanding workloads in next generation data centers. Comprehensive stateless offloads to optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X to provide performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Stateful hardware offload for TCP/IP: TCP Offload Engine (TOE).
CertificationFCC Class A ICES=--3, Issue 4 VCCI V3 (2010.04) Class A EN55022:2006 + A1:2007 Class A EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 BSMI, CNS13438 (2006) Class A EN55022:2006+A12007 class A KN22 Class A, KN24 CE EN 60590 UL/cUL
Connectivity technologyWired
Height247.65 mm
Host interfacePCI-E
Weight450 g
Width57.15 mm
