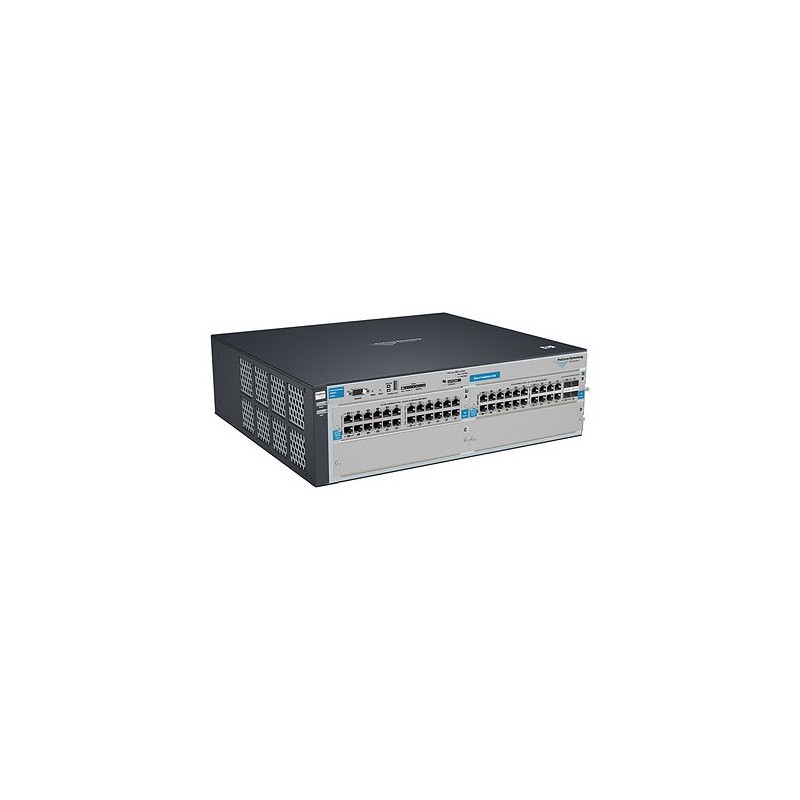

HP E4204-44G-4SFP vl Switch
HP E4204-44G-4SFP vl Switch HP E4204-44G-4SFP vl Switch HP E4204-44G-4SFP vl Switch HP E4204-44G-4SFP vl Switch

Hewlett Packard Enterprise E4204-44G-4SFP vl Switch

ProCurve 4204vl-48GS Switch

J9064A

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The HP 4200 vl Switch Series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackable switches. These switches offer a proven chassis form factor with high quality and reliability in 10/100, 10/100/1000, and 10-Gigabit scalable solutions that integrate easily into any network.

Quality of Service (QoS)


• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues



Management


• Uni-Directional Link Detection (UDLD): monitors cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops



Connectivity


• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports



Performance


• Architecture: up to 76.8 Gbps crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput built on HP custom-designed ASIC technology



Resiliency and high availability


• IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 trunks, each with up to eight links (ports) per trunk



Manageability


• sFlow (RFC 3176): wire-speed traffic accounting and monitoring



Layer 2 switching


• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously

Form factor3U height
Operating temperature (T-T)32 - 104 °F
SafetyCSA 22.2 No. 950; UL 60950; EN 60950
Supported network protocolsRFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802
Weight11090 g
