Axis M1145-L

Axis M1145-L

M1145-L, 2MP/ HDTV 1080p, CMOS, IR, 1920 x 1080, H.264, RJ-45 10BASE-T/100BASE-TX

0591-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

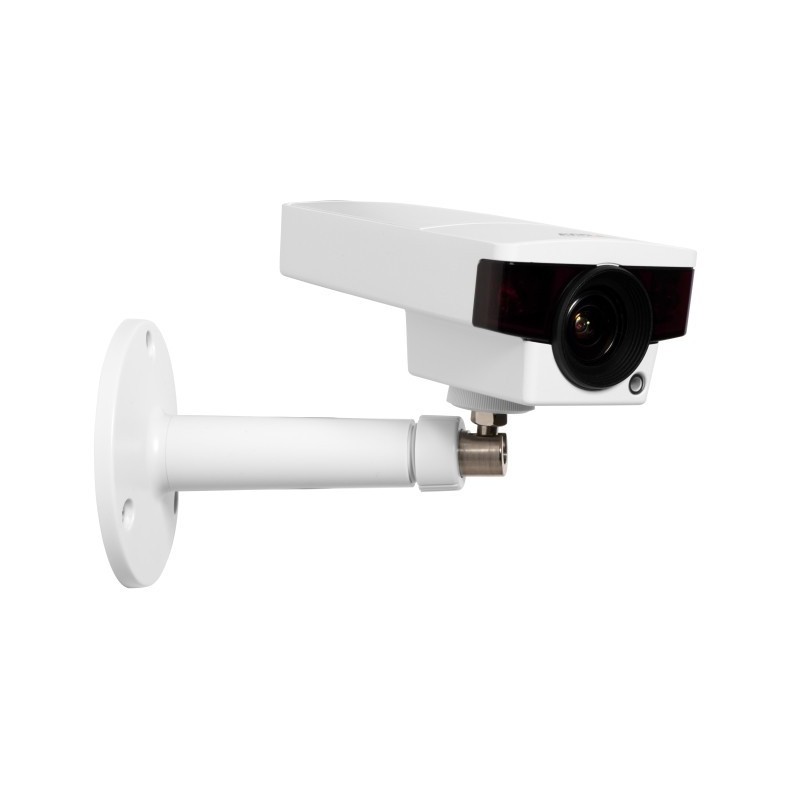

AXIS M1145-L Network Camera is an affordable and compact fixed camera, perfectly suited for boutiques, restaurants, hotels and offices or other places where surveillance is required during day and night.



AXIS M1145-L with board-mount, varifocal, P-iris lens provides excellent image quality at 30 frames per second in 2 megapixel / HDTV resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. The camera supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording.



AXIS M1145-L offers Axis OptimizedIR, a power-efficient LED technology that provides an adaptable angle of IR illumination and discreet integration of IR LEDs, the cameras provide automatic illumination of a scene in complete darkness, at an event or when requested by a user. The IR LED illumination which is invisible to the human eye, is perfect for discovering objects in a range of up to 15 meters (50 ft).



AXIS M1145-L offers support for edge storage that allows recording video directly to a storage such as an microSD/SD/SDHC card, thereby creating a flexible and reliable video surveillance system.



Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. AXIS M1145-Lalso offers remote zoom and focus that eliminates the need for hands-on fine tuning and ensures that the camera’s angle of view is optimized for the area to be monitored.
Connectivity technologyWired
Day/night modeYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorbullet
Frame rate30 fps
Height115 mm
HTTPS encryptionYes
IP address filteringYes
Maximum resolution1920 x 1080 pixels
Mounting typeWall
Night visionYes
Operating temperature (T-T)0 - 40 °C
Optical sensor size1/2.9 "
Sensor typeCMOS
Supported network protocolsHTTP, HTTPS, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, CIFS/SMB, SSH
Width75 mm
