Aten CS74D

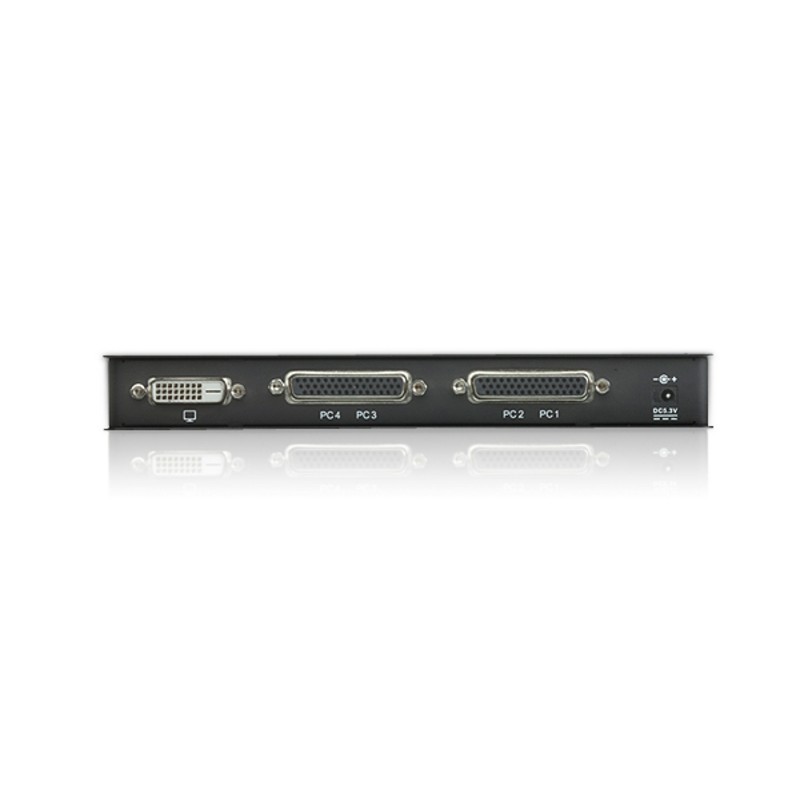

4-Port USB DVI KVM Switch

CS74D

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The CS74D 4-Port USB DVI KVM Switch allows you to control four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.



- Fully compliant with DVI specifi cation (Digital only).

- Supports multi-function and wireless mouse/keyboard.

- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems.

- Superior video quality – 1920 x 1200@60Hz.

- Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun.

- HDCP compliant.

- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer.

- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems.

- Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*.

- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing.

- Complete keyboard emulation for error-free booting.

- Firmware upgradeable.

- Mac/Sun keyboard support and emulation**.



* Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse.

** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers.
Depth198 mm
Height22.8 mm
Maximum resolution1920 x 1200 pixels
Operating temperature (T-T)0 - 50 °C
Weight510 g
Width75.4 mm
