ICX 7750

Brocade ICX 7750

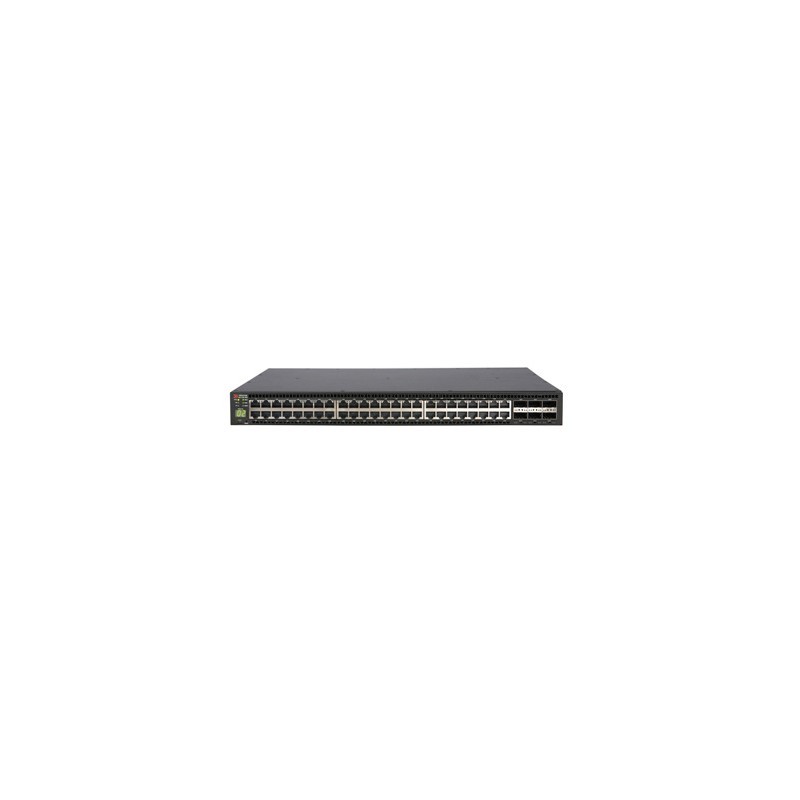

Brocade ICX 7750 Switch

ICX7750-48C

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Today’s enterprise network core and aggregation layers are quickly moving to 10 and 40 Gigabit Ethernet (GbE) switching as enterprises rapidly adopt applications such as High-Definition (HD) video and Bring Your Own Device (BYOD) initiatives, which drive the need for resilient, high-bandwidth access networks. To meet these challenges, campus network solutions must provide better performance, port density, reliability, security, Quality of Service (QoS), and Total Cost of Ownership (TCO).



The Brocade ICX 7750 Switch delivers industry-leading 10/40 GbE port density, advanced high-availability capabilities, and a flexible distributed chassis architecture*, making it the most robust Brocade aggregation and core distributed chassis switch offering for enterprise LANs. In addition to rich Layer 3 features, the Brocade ICX 7750 supports 12-unit distributed-chassis stacking and is an integral part of the Brocade HyperEdge Architecture for campus LANs.



Today’s data centers are also expanding as the demand for data and storage continues to grow exponentially. Moreover, requirements such as application convergence, non-stop operation, scalability, high availability, and power efficiency are placing even greater demands on the network infrastructure.



Part of the Brocade ICX family of Ethernet switches for campus LAN and classic Ethernet data center environments, the Brocade ICX 7750 Switch is a 1U high-performance, high-availability, and market-leading-density 10/40 GbE solution that meets the needs of business-sensitive campus deployments and classic Ethernet data center environments. With industry-leading price/performance and a low-latency, cut-through, non-blocking architecture, the Brocade ICX 7750 provides a cost-effective, robust solution for the most demanding deployments.



Highlights include:

- Delivers superior value by incorporating enterprise-grade advanced features such as VRRPe, BGP, robust IPv4/IPv6 support, Multi-Chassis Trunking (MCT)†, and Virtual Routing and Forwarding (VRF)

- Provides unprecedented stacking density and performance with up to 12 switches per stack and up to 480 Gbps of stacking bandwidth, limiting inter-switch bottlenecks and supporting large-scale distributed chassis deployments

- Offers industry-leading 10/40 GbE port density and flexibility in a 1U form factor with up to 32 40 GbE or 96* 10 GbE ports per unit, saving valuable rack space and power in wiring closets

- Provides chassis-class high availability with six full-duplex 40 Gbps stacking ports per switch, hitless stacking failover, and hot-swappable power supplies and fan assemblies

- Provides OpenFlow support in true hybrid port mode, enabling Software-Defined Networking (SDN) for programmatic control of network data flows‡.
10G supportYes
Depth431 mm
Height43.6 mm
Operating temperature (T-T)0 - 40 °C
Weight10170 g
Width440 mm
