Axis T8123-E

Axis T8123-E

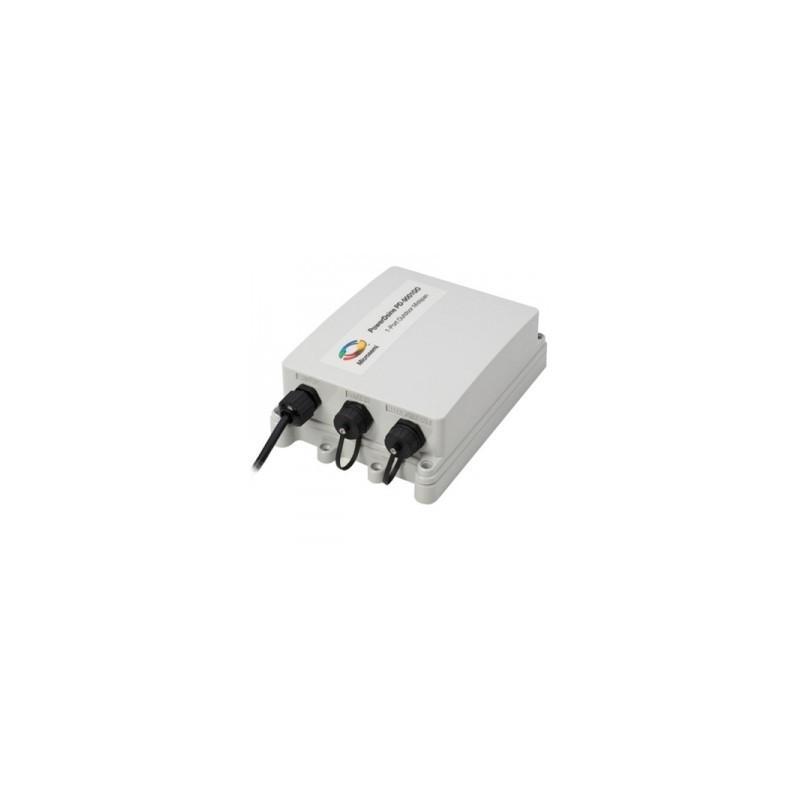

T8123-E Outdoor Midspan 30w

5030-231

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Axis network video compatibility



The midspans and splitters conform to the IEEE 802.3at for powering devices with high power requirements on a network. The midspans are also IEEE 802.3af compliant, which means that they can be used with all Axis network video products with built-in PoE support.



The function of a midspan is to inject power into a network cable. A splitter, which separates data and power coming over an Ethernet cable, is used for a network video product without built-in support for PoE.



Outdoor-ready from -40 °C to 65 °C





The outdoor-ready midspans are IP66- and NEMA 4X-rated, with extended temperature range from -40 °C to 65 °C (-40 °F to 149 °F) at certain output power. AXIS T8123-E and AXIS T8124-E also offer surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66-rated RJ-45 connectors, the installer does not have to open the outdoor midspan, just connect the mains cable and the network video produc
CertificationFCC part 15, Class B with FTP cabling, EN 55022\nClass B, EN 55024, EN 61000-4-5 Class 5\n(6kV CM), VCCI, ICES-003, KCC, C-tick, CQC,\nUL 60950-1, UL 60950-22 (UL/cUL), GS Mark, CB, KC, S-mark, IEC 60529 IP66, NEMA 250 Type 4X,\nASTM B-117, GR-1089-CORE,
Ethernet LAN (RJ-45) ports3
Operating temperature (T-T)-40 - 85 °C
SafetyFCC
Weight1000 g
