Intel XL710-QDA2
Intel XL710-QDA2 Intel XL710-QDA2 Intel XL710-QDA2 Intel XL710-QDA2

Intel XL710-QDA2

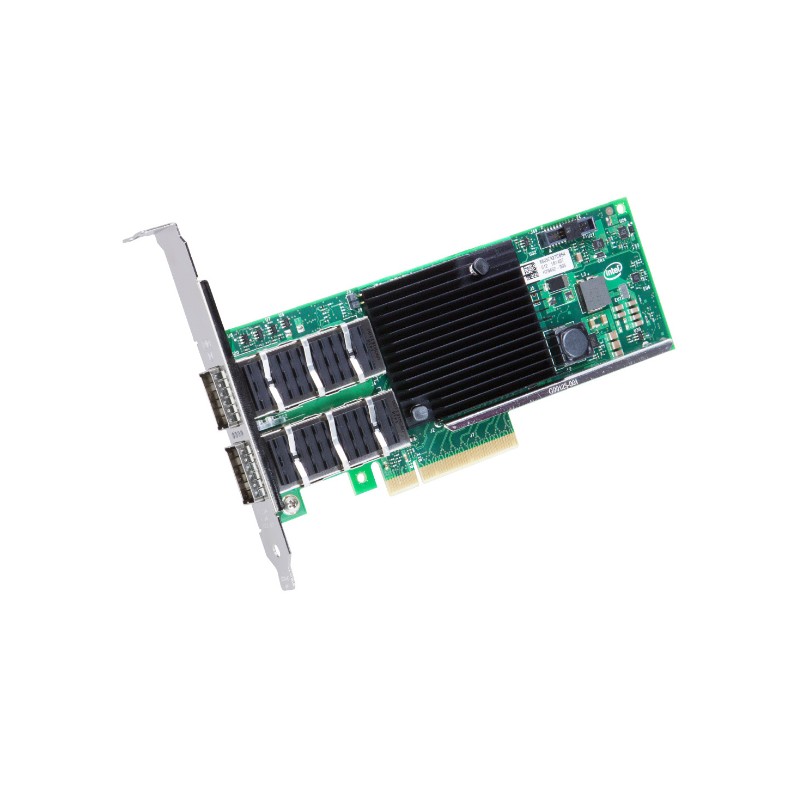

Ethernet Converged Network Adapter XL710-QDA2

XL710QDA2

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.



Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
CertificationFCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Connectivity technologyWired
Depth152.4 mm
Host interfacePCI-E
Operating temperature (T-T)0 - 55 °C
Supported network protocolsTCP, UDP, IP
Width68.6 mm
