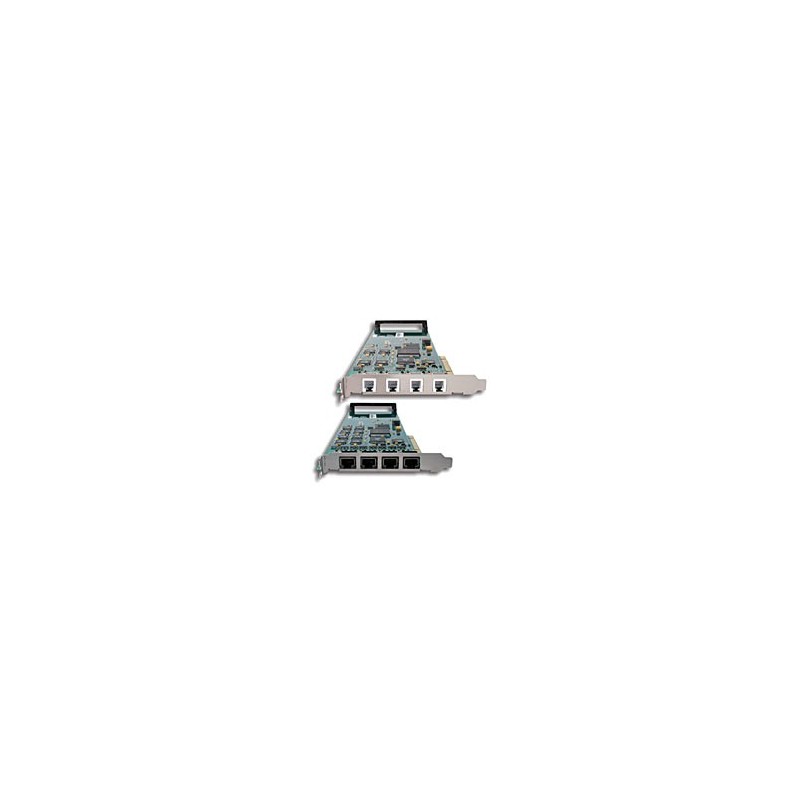

Dialogic Eicon Diva Server Analog-4P

Dialogic Eicon Diva Server Analog-4P

Diva Server Analog-4P - International

306-232

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Diva Server Analog communication adapters are available in 4-port and 8-port variants, offering standard RJ-11 interfaces to connect to public and private switching systems via analog trunk interfaces. The 2-port variant can also be ordered in Low Profile form factor and is currently available for evaluation from your local Dialogic sales office.



Sharing the unique system architecture that is common to all Diva Server adapters, Diva Server Analog products provide powerful on-board CPU and Digital Signaling Processor (DSP) resources - one dedicated to each communication channel. Thanks to providing high-performance media processing functions such as V.90 data modem, V.34 fax receiver and transmitter, Voice over IP (VoIP) streaming, voice compression and echo cancellation on-board, Diva Server Analog enhances the overall system performance and lowers implementation cost. Based on the latest industry standards, Diva Sever Analog works in any PCI and PCI-X based server platform and demonstrates best-in-class system design, resulting in minimum power consumption and heat dissipation.



Like all Diva Server adapters Diva Server Analog also supports a common and consistent set of programming interfaces. This allows application developers and system integrators to minimize porting effort and reduces time to market. Whether using industry standard CAPI and TAPI, or Diva Server API via the Software Development Kit (SDK), an application once designed to work with any Diva Server adapter can also seamlessly be used with Diva Server Analog.



Universal, Multifunction Platform

- For enterprise fax, voice and remote access applications.

Cutting-Edge Hardware Design

- Compliant to the latest PCI specifications.

High-Performance Media Processing

- Powerful DSPs – one dedicated to each channel.

Consistent Diva Server Programming Interface

- Design once – use on all!

State-of-the-art operating systems supported

- Both Microsoft Windows as well as Linux.

Superior Scalability and Flexibility

- Up to 8 adapters can be operated concurrently in a server.

Easy to Install and Configure

- Plug and Play, no need to manually configure your server.
Certification-CE Mark; -Telecom: TIA 968-A (FCC part 68), IC CS03, TS 103 021 (TBR21); -EMC: FCC part 15, ICES-003, EN55022, EN55024; -Safety: UL 60950, CSA 60950, EN 60950;
Connectivity technologyWired
Depth312 mm
Host interfacePCI
Operating temperature (T-T)10 - 50 °C
Width106.68 mm
