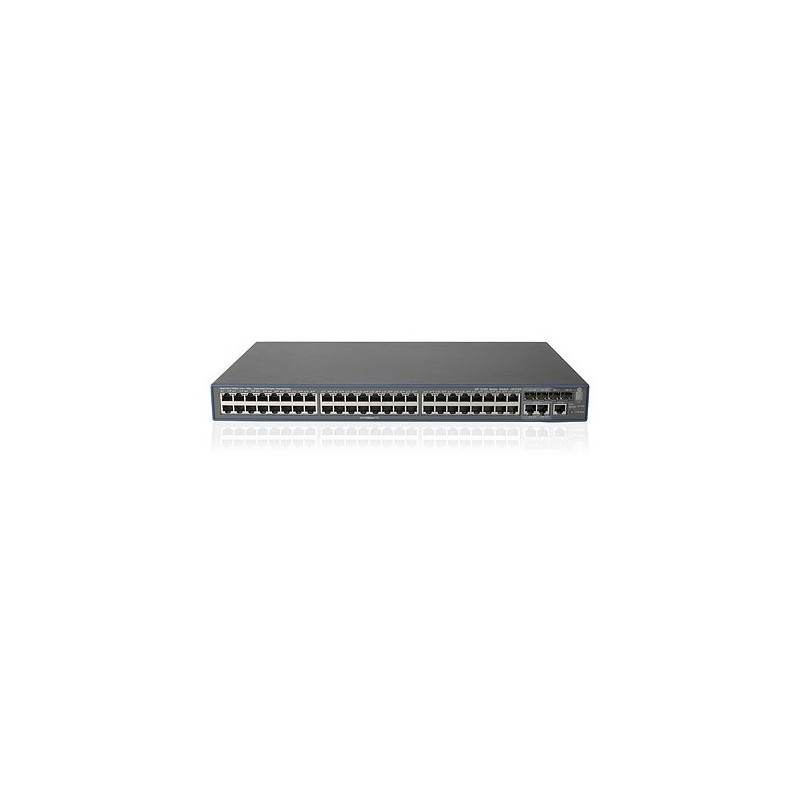

HP 3100-48 v2 Switch

Hewlett Packard Enterprise 3100-48 v2

3100-48 v2 Switch

JG315A

Stock Due 08-08-2024

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service and security features including rate limiting, QinQ, ACLs, a 24-port PoE model and improved reliability with backup redundancy.



The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.



Features



Reliable Fast Ethernet Access Layer Switches

- The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises.

- Series includes 8-, 16-, 24- and 48-port models with Gigabit Ethernet uplinks with a 24-port PoE model for support of IP phones, wireless APs and video cameras.

- Hardware-based wirespeed access control lists (ACLs) help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation.

- External redundant power supply provides improved reliability.



Enhanced Quality of Service (QoS) and Service Control

- The HP 3100 EI Switch Series provides traffic prioritization with supported congestion actions including strict priority (SP), weighted round robin (WRR), SP+WRR and HQ+WRR queuing.

- Broadcast control cuts down on unwanted network broadcast traffic. Advanced QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.

- Multiple user authentication methods include MAC Authentication, IEEE 802.1X and Web-based authentications for improved security.

- Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.



Single View of the Network

- The HP 3100 EI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
10G supportNo
Depth260.1 mm
Form factor1U
Height43.7 mm
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Weight3500 g
Width439.9 mm
