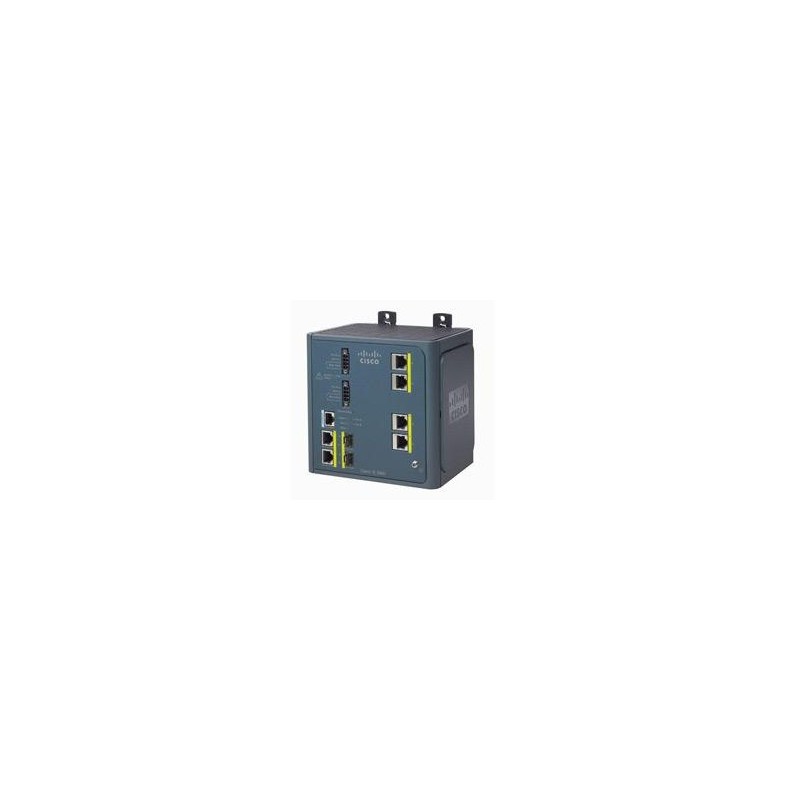

Cisco IE 3000 4-Port

Cisco IE-3000-4TC-E

4 Ethernet 10/100, DC, Layer 3, 802.1q, QoS, IGMPv3, DHCP, 128 MB DRAM

IE-3000-4TC-E

Stock Due 02-06-2023

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Product Overview

The Cisco® Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco's leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:



- Industrial design and compliance;

- Tools for easy deployment, management, and replacement;

- Network security based on open standards;

- Integration of IT and industrial automation networks;

- The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs);

- The Cisco IE 3000 offers;

- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19" rack mounting;

- Support for hundreds of hardware configurations;

- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant and CiscoWorks;

- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure;

- High availability, guaranteed determinism, and reliable security using Cisco IOS® Software;

- Recommended software configurations for industrial applications that can be applied at the touch of a button;

- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets;

- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications;

- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP);

- Transparent IT integration with the support of Layer 3 routing protocols (IP Services);

- PROFINET v2 certification, with PROFINET conformance class B compliance;

- ABB Industrial IT certification.
10G supportNo
CertificationUL 60950-1, CSA C22.2 No. 60950-1, TUV/GS, EN 60950-1, CB IEC 60950-1, NOM, FCC, EN 55022, CISPR 22, CISPR11, VCCI, AS/NZS 3548, CNS 13438, KN 22
Depth112 mm
Height152 mm
Operating temperature (T-T)-40 - 75 °C
Weight2000 g
Width147 mm
