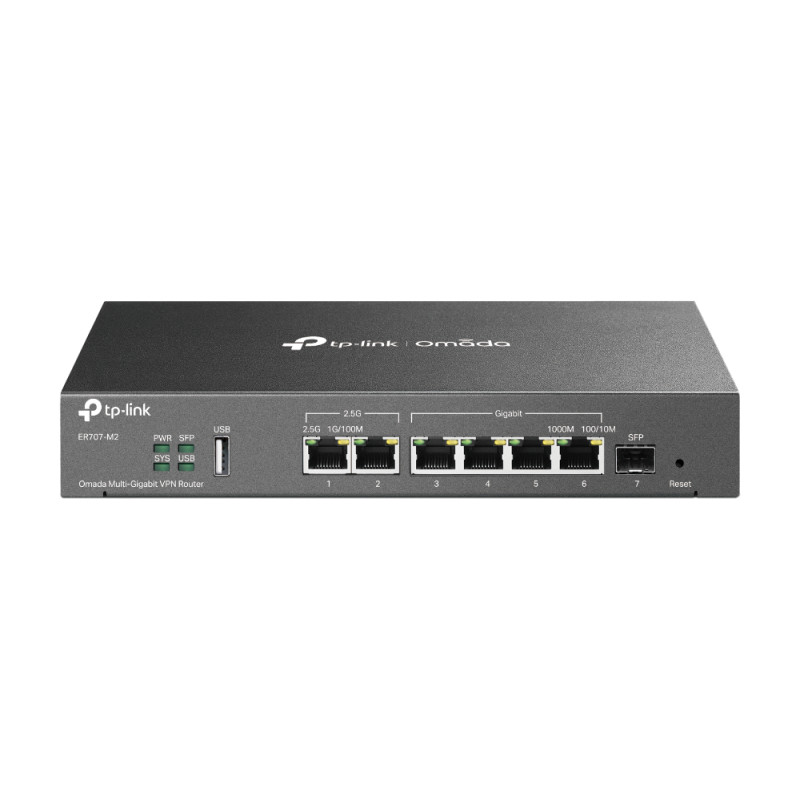

TP-Link Multi-Gigabit VPN Router
TP-Link Multi-Gigabit VPN Router TP-Link Multi-Gigabit VPN Router TP-Link Multi-Gigabit VPN Router TP-Link Multi-Gigabit VPN Router

TP-Link Multi-Gigabit VPN Router

Omada Multi-Gigabit VPN Router, 1 x 2.5G RJ45 WAN, 1 x 2.5G RJ45 WAN/LAN, 1 x Gigabit SFP WAN/LAN, 4 x Gigabit RJ45 WAN/LAN, 1 x USB 2.0

er707-m2

In Stock

Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.

6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.

Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Depth131 mm
Ethernet LAN (RJ-45) ports6
Height35 mm
Housing materialSteel
Operating temperature (T-T)0 - 40 °C
Power source typeDC
Supported network protocolsTCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Width226 mm
Product colourBlack
Sustainability complianceY
Compliance certificatesCE,Federal Communications Commission (FCC),RoHS
SFP WANY
WAN/Ethernet LAN ports quantity6
WAN ports quantity1

er707-m2.pdf

TP-Link Multi-Gigabit VPN Router Data Sheet

Download (3.47M)
