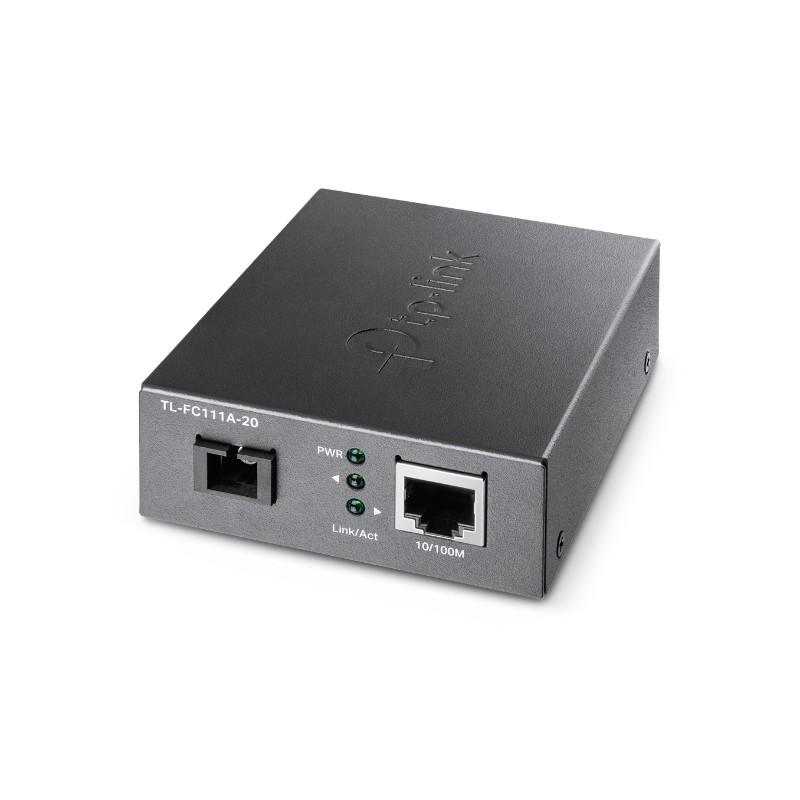

TP-Link 10/100 Mbps WDM Media Converter
TP-Link 10/100 Mbps WDM Media Converter TP-Link 10/100 Mbps WDM Media Converter TP-Link 10/100 Mbps WDM Media Converter

TP-Link 10/100 Mbps WDM Media Converter

SC, RJ-45, 100Base-FX, 94.5x73x27 mm

tl-fc111a-20

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
CertificationFCC, CE
Connectivity technologyWired
Depth73 mm
Ethernet LAN (RJ-45) ports1
Height27 mm
Operating temperature (T-T)0 - 50 °C
Width94.5 mm
Product colourBlack
Fiber cable diameters supported (core/cladding)9/125 µm
Sustainability certificatesRoHS
Harmonized System (HS) code85176990
